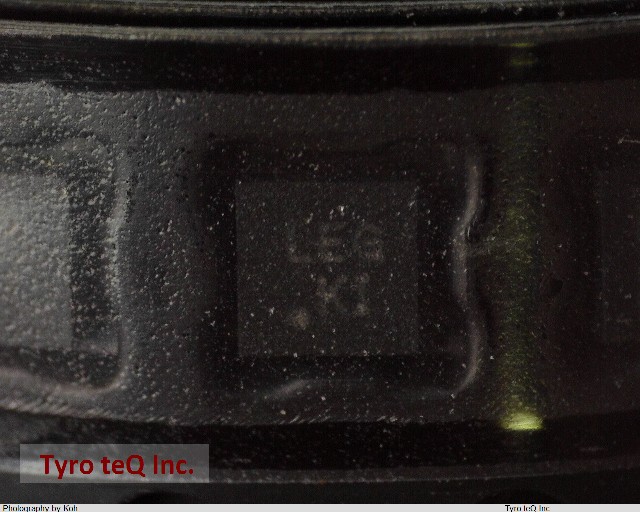

ADP123ACPZR7 データシート

Name: ADP123ACPZR7
Brand: AD
SKU: 110240286-0000-0000-0000

ADP123ACPZR7 - AD の商品詳細ページです。

２営業日以内に回答いたします

ADP123ACPZR7 の詳細情報

型番	ADP123ACPZR7
メーカー	AD
データシート
Dropout Voltage1-Max	0.15 V
JESD-30 Code	S-PDSO-N6
JESD-609 Code	e4
Length	2 mm
Moisture Sensitivity Level	1
Number of Functions	1
Number of Terminals	6
Operating Temperature, TJ-Max	125 Cel
Operating Temperature, TJ-Min	-40 Cel
Output Current1-Max	0.3 A
Output Voltage1-Max	5 V
Output Voltage1-Min	0.8 V
Package Body Material	PLASTIC/EPOXY
Package Code	HVSON
Package Shape	SQUARE
Package Style	SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE Meter
Peak Reflow Temperature (Cel)	260
Regulator Type	ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR
Seated Height-Max	0.65 mm
Surface Mount	YES
Technology	CMOS
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	NO LEAD
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Width	2 mm
