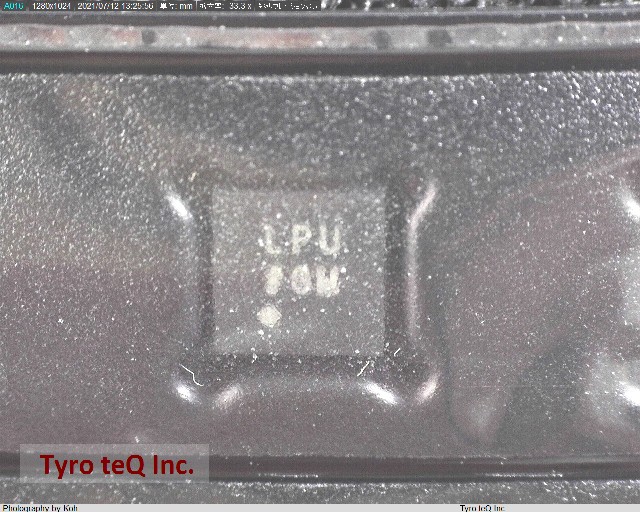

ADM7170ACPZ-3.3-R7 データシート

Name: ADM7170ACPZ-3.3-R7
Brand: AD
SKU: 110256744-0000-0000-0000

ADM7170ACPZ-3.3-R7 - AD の商品詳細ページです。

２営業日以内に回答いたします

ADM7170ACPZ-3.3-R7 の詳細情報

型番	ADM7170ACPZ-3.3-R7
メーカー	AD
データシート
Input Voltage-Max	6.5 V
Input Voltage-Min	2.3 V
JESD-30 Code	S-PDSO-N8
JESD-609 Code	e3
Length	3 mm
Moisture Sensitivity Level	3
Number of Functions	1
Number of Terminals	8
Operating Temperature, TJ-Max	125 Cel
Operating Temperature, TJ-Min	-40 Cel
Output Current1-Max	0.5 A
Output Voltage1-Max	3.3413 V
Output Voltage1-Min	3.2588 V
Output Voltage1-Nom	3.3 V
Package Body Material	PLASTIC/EPOXY
Package Code	HVSON
Package Shape	SQUARE
Package Style	SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	260
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Seated Height-Max	0.8 mm
Surface Mount	YES
Technology	CMOS
Terminal Finish	Matte Tin (Sn)
Terminal Form	NO LEAD
Terminal Pitch	0.5 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Width	3 mm
