ADM660ARZ データシート

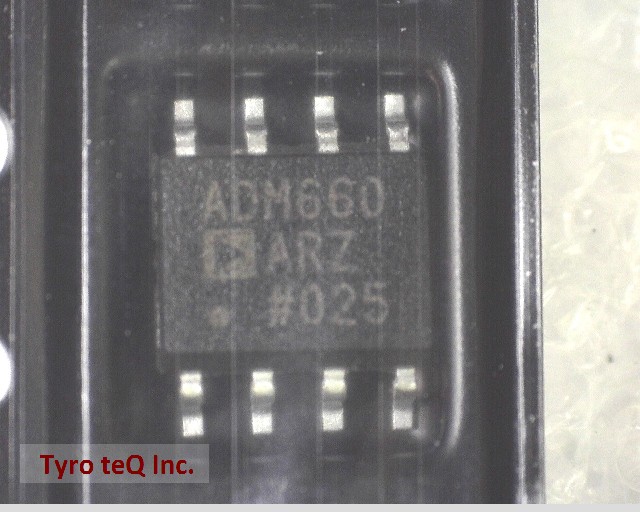

Name: ADM660ARZ
Brand: AD
SKU: 110024399-0000-0000-0000

ADM660ARZ - AD の商品詳細ページです。

２営業日以内に回答いたします

ADM660ARZ の詳細情報

型番	ADM660ARZ
メーカー	AD
データシート
Analog IC - Other Type	SWITCHED CAPACITOR CONVERTER
Control Mode	VOLTAGE-MODE
Input Voltage-Max	7 V
Input Voltage-Min	1.5 V
Input Voltage-Nom	5 V
JESD-30 Code	R-PDSO-G8
JESD-609 Code	e3
Length	4.9 mm
Moisture Sensitivity Level	1
Number of Functions	1
Number of Terminals	8
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Current-Max	0.1 A
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP8,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Seated Height-Max	1.75 mm
Sub Category	Other Analog ICs
Supply Current-Max (Isup)	4.5 mA
Surface Mount	YES
Switcher Configuration	DOUBLER INVERTER
Switching Frequency-Max	120 kHz
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Matte Tin (Sn)
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Width	3.9 mm
