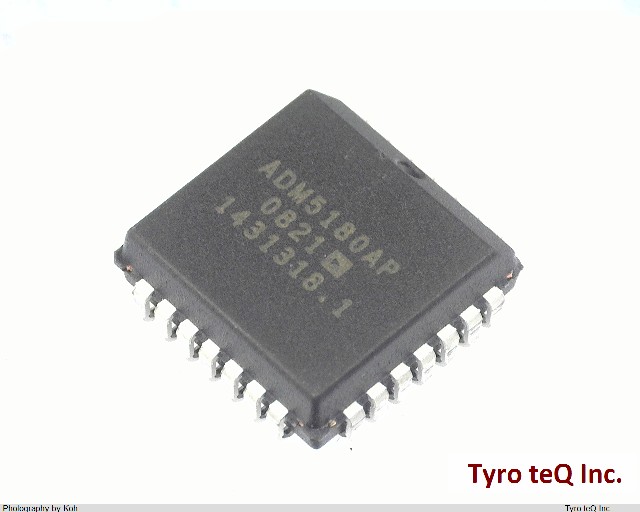

ADM5180AP データシート

Name: ADM5180AP
Brand: AD
SKU: 110024308-0000-0000-0000

ADM5180AP - AD の商品詳細ページです。

２営業日以内に回答いたします

ADM5180AP の詳細情報

型番	ADM5180AP
メーカー	AD
データシート
Differential Output	NO
Input Characteristics	DIFFERENTIAL SCHMITT TRIGGER
Interface IC Type	LINE RECEIVER
Interface Standard	EIA-232-E; V.10; V.11; V.28; X.26; X.27; EIA-422-A; EIA-423-A

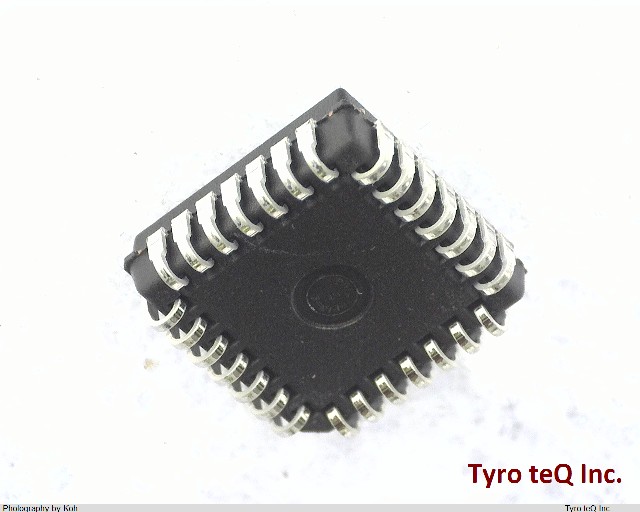

JESD-30 Code	S-PQCC-J28
JESD-609 Code	e0
Length	11.505 mm
Moisture Sensitivity Level	1
Number of Functions	1
Number of Terminals	28
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Characteristics	TOTEM-POLE
Output Low Current-Max	0.004 Amp
Output Polarity	TRUE
Package Body Material	PLASTIC/EPOXY
Package Code	QCCJ
Package Equivalence Code	LDCC28,.5SQ
Package Shape	SQUARE
Package Style	CHIP CARRIER Meter
Peak Reflow Temperature (Cel)	225
Power Supplies	5 V
Qualification Status	Not Qualified
Receive Delay-Max	550 ns
Receiver Number of Bits	8
Seated Height-Max	4.57 mm
Sub Category	Line Driver or Receivers
Supply Current-Max	5 mA
Supply Voltage-Max	5.25 V
Supply Voltage-Min	4.75 V
Supply Voltage-Nom	5 V
Surface Mount	YES
Technology	BICMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Matte Tin (Sn)
Terminal Form	J BEND
Terminal Pitch	1.27 mm
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	30
Width	11.505 mm
