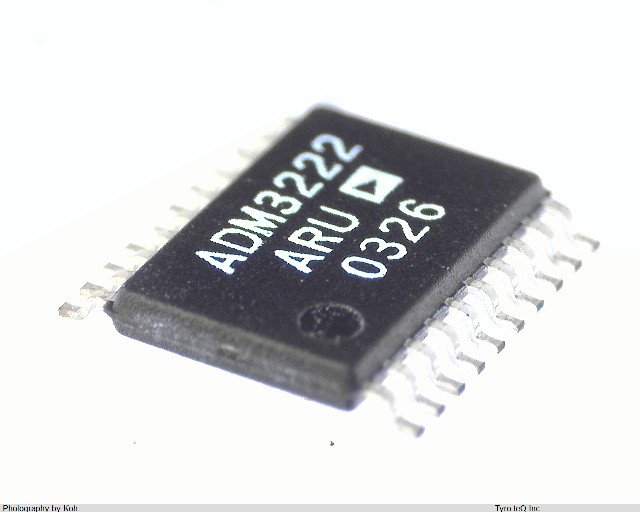

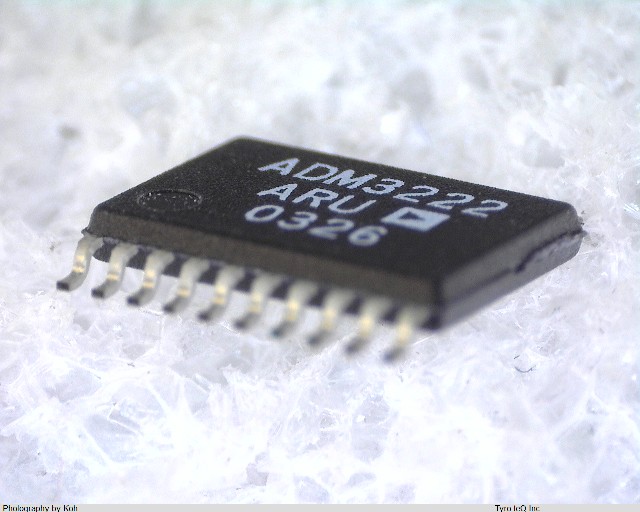

ADM3222ARU データシート

Name: ADM3222ARU
Brand: AD
SKU: 110024154-0000-0000-0000

ADM3222ARU - AD の商品詳細ページです。

２営業日以内に回答いたします

ADM3222ARU の詳細情報

型番	ADM3222ARU
メーカー	AD
データシート
Differential Output	NO
Driver Number of Bits	2
Input Characteristics	SCHMITT TRIGGER
Interface IC Type	LINE TRANSCEIVER
Interface Standard	EIA-232-E; TIA-232-E; V.28
JESD-30 Code	R-PDSO-G20
JESD-609 Code	e0
Length	6.5 mm
Moisture Sensitivity Level	1
Number of Functions	2
Number of Terminals	20
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Out Swing-Min	5 V
Output Low Current-Max	0.0016 Amp
Package Body Material	PLASTIC/EPOXY
Package Code	TSSOP
Package Equivalence Code	TSSOP20,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	240
Power Supplies	3.3 V
Qualification Status	Not Qualified
Receive Delay-Max	1000 ns
Receiver Number of Bits	2
Seated Height-Max	1.2 mm
Sub Category	Line Driver or Receivers
Supply Current-Max	10 mA
Supply Voltage-Max	5.5 V
Supply Voltage-Min	3 V
Supply Voltage-Nom	3.3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Matte Tin (Sn)
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Transmit Delay-Max	1200 ns
Width	4.4 mm

会社名称	アナログ・デバイセズ
設立	1965
所在地	One Technology Way P. O. Box 9106 Norwood, MA 02062-9106 United States
URL	http://www.analog.com/
