ADM3101EARQZ データシート

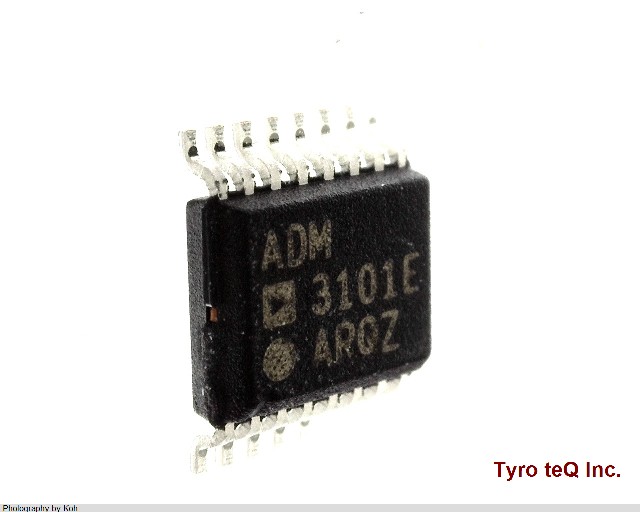

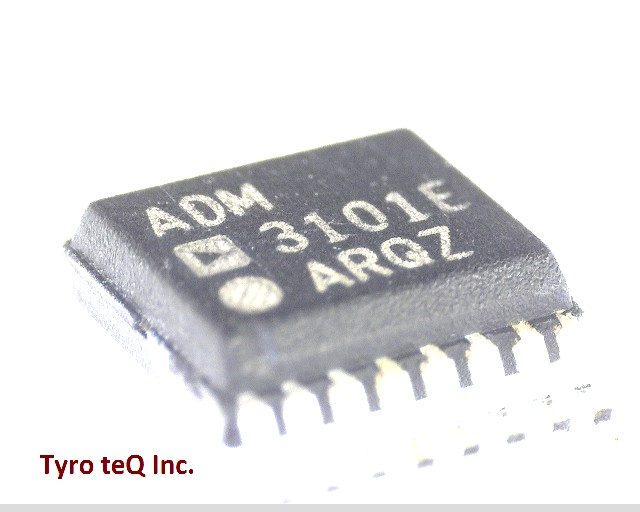

Name: ADM3101EARQZ
Brand: AD
SKU: 110024141-0000-0000-0000

ADM3101EARQZ - AD の商品詳細ページです。

２営業日以内に回答いたします

ADM3101EARQZ の詳細情報

型番	ADM3101EARQZ
メーカー	AD
データシート
Additional Feature	DUMMY VAL
Differential Output	NO
Driver Number of Bits	1
Input Characteristics	SCHMITT TRIGGER
Interface IC Type	LINE TRANSCEIVER
Interface Standard	EIA-232; TIA-232; V.28
JESD-30 Code	R-PDSO-G16
JESD-609 Code	e3
Length	4.9 mm
Moisture Sensitivity Level	1
Number of Functions	1
Number of Terminals	16
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Out Swing-Min	10 V
Output Low Current-Max	0.0016 Amp
Package Body Material	PLASTIC/EPOXY
Package Code	SSOP
Package Equivalence Code	SSOP16,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	3.3 V
Qualification Status	Not Qualified
Receive Delay-Max	0 ns
Receiver Number of Bits	1
Seated Height-Max	1.9 mm
Sub Category	Line Driver or Receivers
Supply Current-Max	7 mA
Supply Voltage-Max	5.5 V
Supply Voltage-Min	3 V
Supply Voltage-Nom	3.3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Matte Tin (Sn)
Terminal Form	GULL WING
Terminal Pitch	0.635 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Width	3.91 mm
