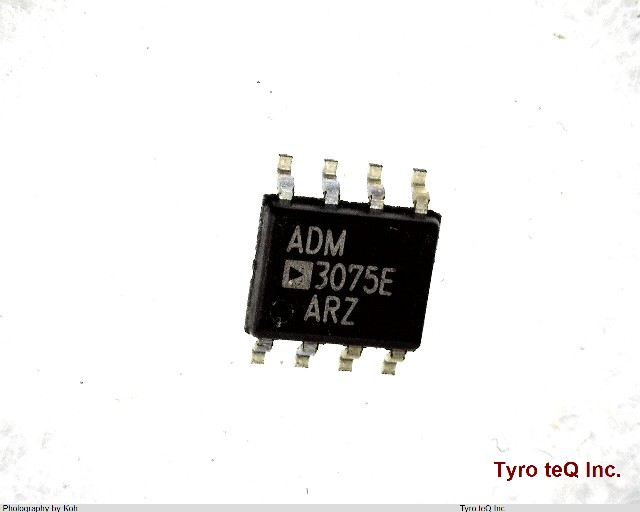

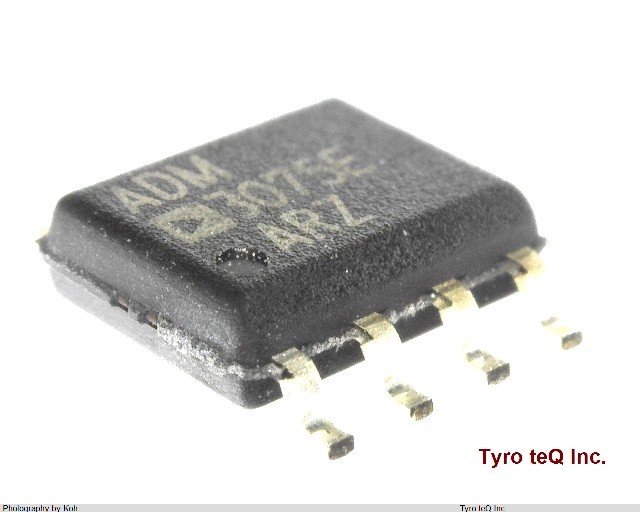

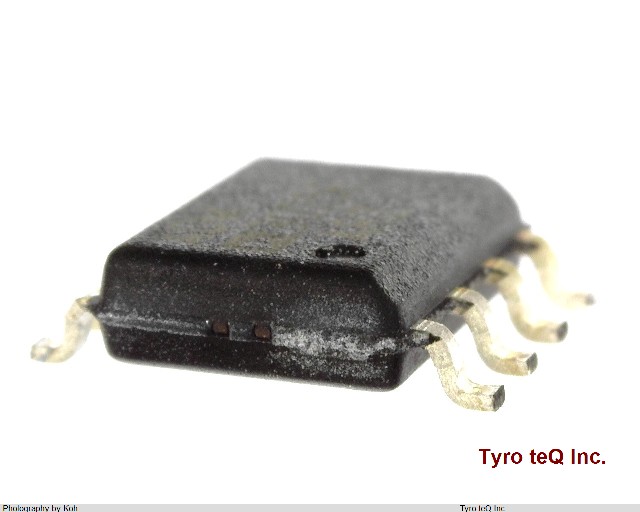

ADM3075EARZ データシート

Name: ADM3075EARZ
Brand: AD
SKU: 110084596-0000-0000-0000

ADM3075EARZ - AD の商品詳細ページです。

２営業日以内に回答いたします

ADM3075EARZ の詳細情報

型番	ADM3075EARZ
メーカー	AD
データシート
Additional Feature	DATA RATES UPTO 500 KBPS
Differential Output	YES
Driver Number of Bits	1
Input Characteristics	DIFFERENTIAL SCHMITT TRIGGER
Interface IC Type	LINE TRANSCEIVER
Interface Standard	EIA-422; EIA-485
JESD-30 Code	R-PDSO-G8
JESD-609 Code	e3
Length	4.9 mm
Moisture Sensitivity Level	1
Number of Functions	1
Number of Terminals	8
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Out Swing-Min	1.5 V
Output Low Current-Max	0.001 Amp
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP8,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	3.3 V
Qualification Status	Not Qualified
Receive Delay-Max	200 ns
Receiver Number of Bits	1
Seated Height-Max	1.75 mm
Sub Category	Line Driver or Receivers
Supply Current-Max	1.5 mA
Supply Voltage-Max	3.63 V
Supply Voltage-Min	2.97 V
Supply Voltage-Nom	3.3 V
Surface Mount	YES
Temperature Grade	INDUSTRIAL
Terminal Finish	Matte Tin (Sn)
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Transmit Delay-Max	800 ns
Width	3.9 mm
