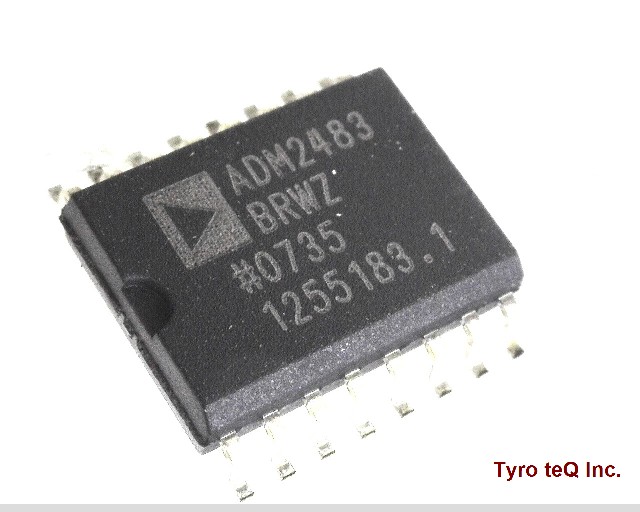

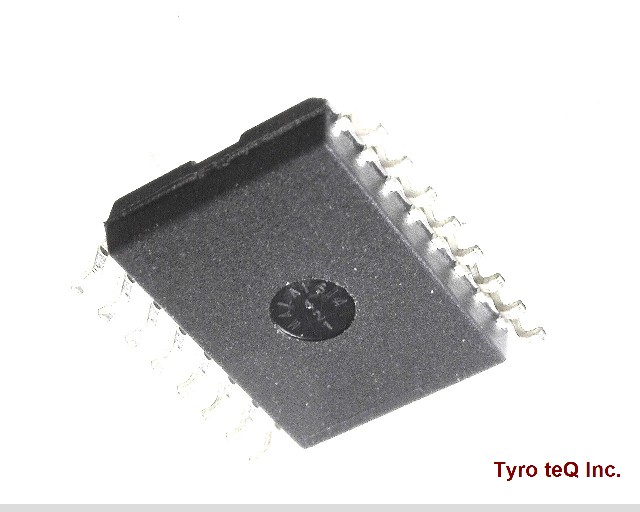

ADM2483BRWZ データシート

Name: ADM2483BRWZ
Brand: AD
SKU: 110024107-0000-0000-0000

ADM2483BRWZ - AD の商品詳細ページです。

２営業日以内に回答いたします

ADM2483BRWZ の詳細情報

型番	ADM2483BRWZ
メーカー	AD
データシート
Differential Output	YES
Driver Number of Bits	1
High Level Input Current-Max	1.0E-5 Amp
Input Characteristics	DIFFERENTIAL SCHMITT TRIGGER
Interface IC Type	LINE TRANSCEIVER
Interface Standard	EIA-485-A; TIA-485-A; ISO 8482E
JESD-30 Code	R-PDSO-G16
JESD-609 Code	e3
Length	10.3 mm
Moisture Sensitivity Level	1
Number of Functions	1
Number of Terminals	16
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Out Swing-Min	1.5 V
Output Low Current-Max	0.004 Amp
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP16,.4
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	3/5,5 V
Qualification Status	Not Qualified
Receive Delay-Max	1050 ns
Receiver Number of Bits	1
Seated Height-Max	2.65 mm
Sub Category	Line Driver or Receivers
Supply Voltage-Max	5.5 V
Supply Voltage-Min	2.7 V
Supply Voltage-Nom	3 V
Supply Voltage1-Max	5.25 V
Supply Voltage1-Min	4.75 V
Supply Voltage1-Nom	5 V
Surface Mount	YES
Temperature Grade	INDUSTRIAL
Terminal Finish	Matte Tin (Sn)
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Transmit Delay-Max	620 ns
Width	7.5 mm
