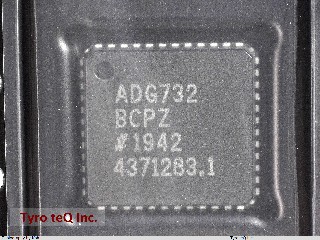

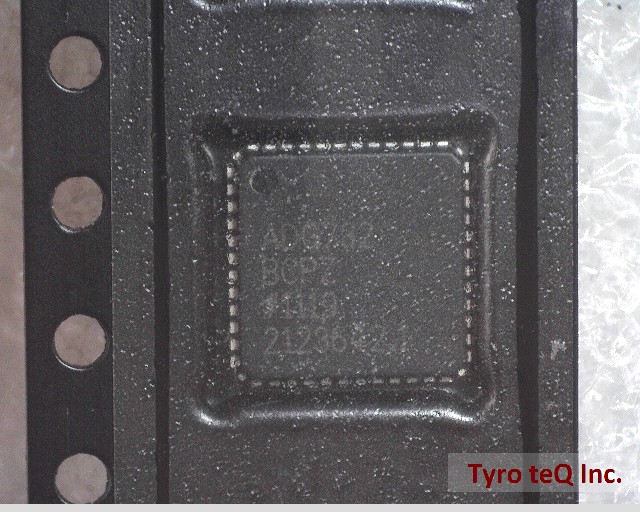

ADG732BCPZ データシート

Name: ADG732BCPZ
Brand: AD
SKU: 110023072-0000-0000-0000

ADG732BCPZ - AD の商品詳細ページです。

２営業日以内に回答いたします

ADG732BCPZ の詳細情報

型番	ADG732BCPZ
メーカー	AD
データシート
Additional Feature	ALSO OPERTES WITH 1.8V TO 5.5V SINGLE SUPPLY
Analog IC - Other Type	SINGLE-ENDED MULTIPLEXER
JESD-30 Code	S-PQCC-N48
JESD-609 Code	e3
Length	7 mm
Moisture Sensitivity Level	3
Neg Supply Voltage-Max (Vsup)	-2.75 V
Neg Supply Voltage-Min (Vsup)	-2.25 V
Neg Supply Voltage-Nom (Vsup)	-2.5 V
Number of Channels	32
Number of Functions	1
Number of Terminals	48
Off-state Isolation-Nom	72 dB
On-state Resistance Match-Nom	0.3 ohm
On-state Resistance-Max (Ron)	5.5 ohm
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	HVQCCN
Package Equivalence Code	LCC48,.27SQ,20
Package Shape	SQUARE
Package Style	CHIP CARRIER Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	3/5/+-2.5 V
Qualification Status	Not Qualified
Seated Height-Max	1 mm
Signal Current-Max	0.03 A
Sub Category	Multiplexer or Switches
Supply Current-Max (Isup)	0.02 mA
Supply Voltage-Max (Vsup)	2.75 V
Supply Voltage-Min (Vsup)	2.25 V
Supply Voltage-Nom (Vsup)	2.5 V
Surface Mount	YES
Switch-off Time-Max	26 ns
Switch-on Time-Max	37 ns
Switching	BREAK-BEFORE-MAKE V
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Matte Tin (Sn)
Terminal Form	NO LEAD
Terminal Pitch	0.5 mm
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	30
Width	7 mm
