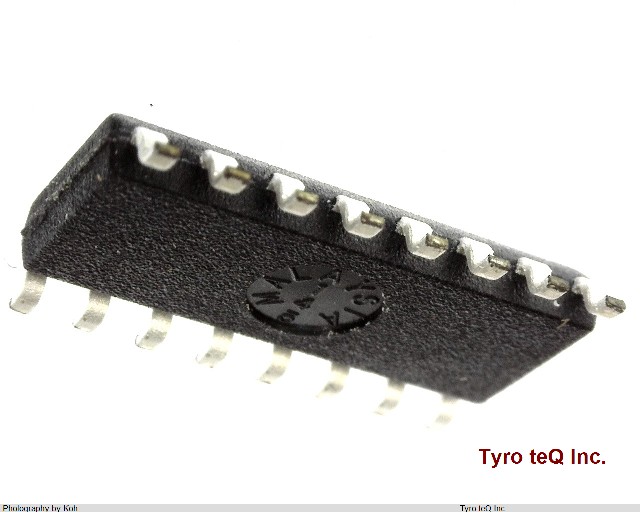

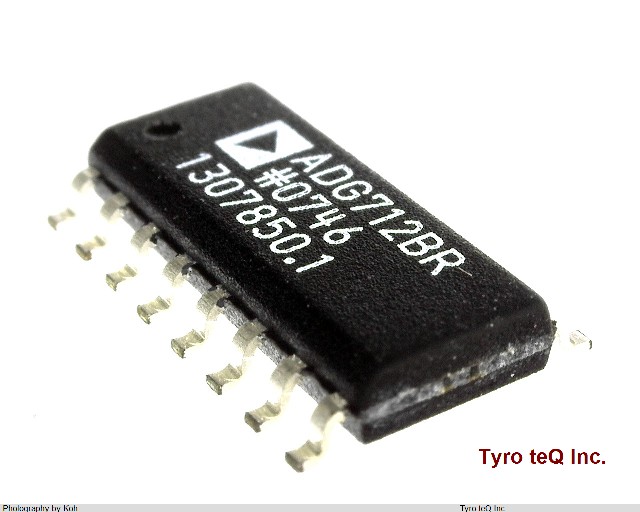

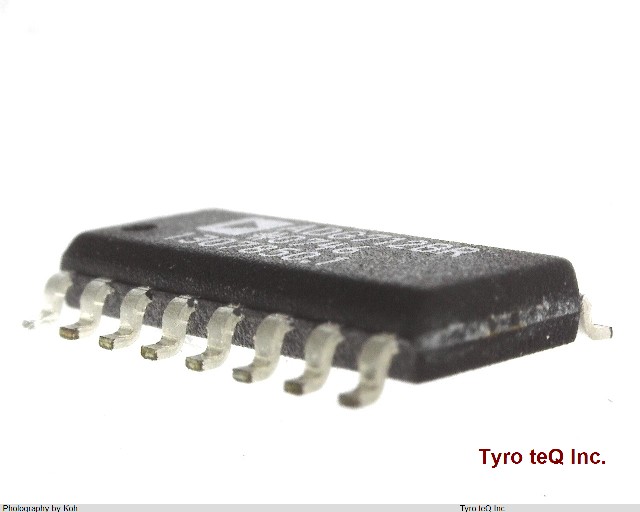

ADG712BR データシート

Name: ADG712BR
Brand: AD
SKU: 110003114-0000-0000-0000

ADG712BR - AD の商品詳細ページです。

２営業日以内に回答いたします

ADG712BR の詳細情報

型番	ADG712BR
メーカー	AD
データシート
Additional Feature	CAN ALSO OPERATE WITH 5 V SUPPLY
Analog IC - Other Type	SPST
JESD-30 Code	R-PDSO-G16
JESD-609 Code	e0
Length	5 mm
Moisture Sensitivity Level	1
Normal Position	NC V
Number of Channels	1
Number of Functions	4
Number of Terminals	16
Off-state Isolation-Nom	58 dB
On-state Resistance Match-Nom	0.1 ohm
On-state Resistance-Max (Ron)	8 ohm
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output	SEPARATE OUTPUT V
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP16,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	240
Power Supplies	3/5 V
Qualification Status	Not Qualified
Seated Height-Max	1.2 mm
Sub Category	Multiplexer or Switches
Supply Voltage-Max (Vsup)	5.5 V
Supply Voltage-Min (Vsup)	1.8 V
Supply Voltage-Nom (Vsup)	3 V
Surface Mount	YES
Switch-off Time-Max	12 ns
Switch-on Time-Max	20 ns
Switching	BREAK-BEFORE-MAKE V
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Matte Tin (Sn)
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	20
Width	3.9 mm
