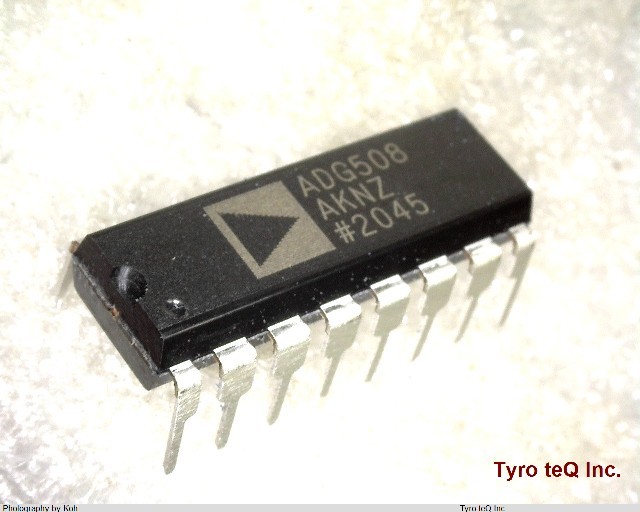

ADG508AKNZ データシート

Name: ADG508AKNZ
Brand: AD
SKU: 110022758-0000-0000-0000

ADG508AKNZ - AD の商品詳細ページです。

２営業日以内に回答いたします

ADG508AKNZ の詳細情報

型番	ADG508AKNZ
メーカー	AD
データシート
Additional Feature	ALSO OPERATES WITH 10.8 V TO 16.5 V SINGLE SUPPLY
Analog IC - Other Type	SINGLE-ENDED MULTIPLEXER
JESD-30 Code	R-PDIP-T16
JESD-609 Code	e3
Length	19.055 mm
Neg Supply Voltage-Max (Vsup)	-16.5 V
Neg Supply Voltage-Min (Vsup)	-10.8 V
Neg Supply Voltage-Nom (Vsup)	-15 V
Number of Channels	8
Number of Functions	1
Number of Terminals	16
Off-state Isolation-Nom	68 dB
On-state Resistance Match-Nom	14 ohm
On-state Resistance-Max (Ron)	450 ohm
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP16,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	12/15,GND/-12/-15 V
Qualification Status	Not Qualified
Seated Height-Max	4.32 mm
Signal Current-Max	0.02 A
Sub Category	Multiplexer or Switches
Supply Current-Max (Isup)	1.5 mA
Supply Voltage-Max (Vsup)	16.5 V
Supply Voltage-Min (Vsup)	10.8 V
Supply Voltage-Nom (Vsup)	15 V
Surface Mount	NO
Switch-off Time-Max	300 ns
Switch-on Time-Max	300 ns
Switching	BREAK-BEFORE-MAKE V
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Matte Tin (Sn)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT APPLICABLE
Width	7.62 mm
