ADG406BPZ データシート

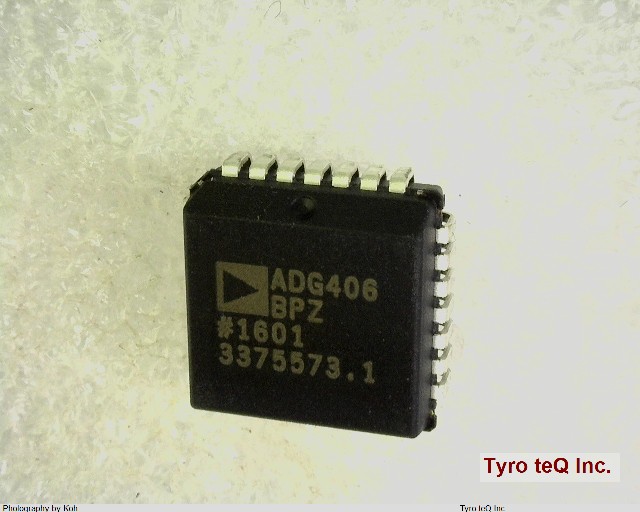

Name: ADG406BPZ
Brand: AD
SKU: 110022614-0000-0000-0000

ADG406BPZ - AD の商品詳細ページです。

２営業日以内に回答いたします

ADG406BPZ の詳細情報

型番	ADG406BPZ
メーカー	AD
データシート
Additional Feature	CAN ALSO OPERATE WITH SINGLE 12V SUPPLY
Analog IC - Other Type	SINGLE-ENDED MULTIPLEXER
JESD-30 Code	S-PQCC-J28
JESD-609 Code	e3
Length	11.505 mm
Moisture Sensitivity Level	3
Neg Supply Voltage-Max (Vsup)	-16.5 V
Neg Supply Voltage-Min (Vsup)	-13.5 V
Neg Supply Voltage-Nom (Vsup)	-15 V
Number of Channels	16
Number of Functions	1
Number of Terminals	28
Off-state Isolation-Nom	75 dB
On-state Resistance Match-Nom	4 ohm
On-state Resistance-Max (Ron)	80 ohm
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	QCCJ
Package Equivalence Code	LDCC28,.5SQ
Package Shape	SQUARE
Package Style	CHIP CARRIER Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	12/+-15 V
Qualification Status	Not Qualified
Seated Height-Max	4.57 mm
Signal Current-Max	0.02 A
Sub Category	Multiplexer or Switches
Supply Voltage-Max (Vsup)	16.5 V
Supply Voltage-Min (Vsup)	13.5 V
Supply Voltage-Nom (Vsup)	15 V
Surface Mount	YES
Switch-off Time-Max	150 ns
Switch-on Time-Max	150 ns
Switching	BREAK-BEFORE-MAKE V
Technology	BICMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Matte Tin (Sn)
Terminal Form	J BEND
Terminal Pitch	1.27 mm
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	30
Width	11.505 mm
