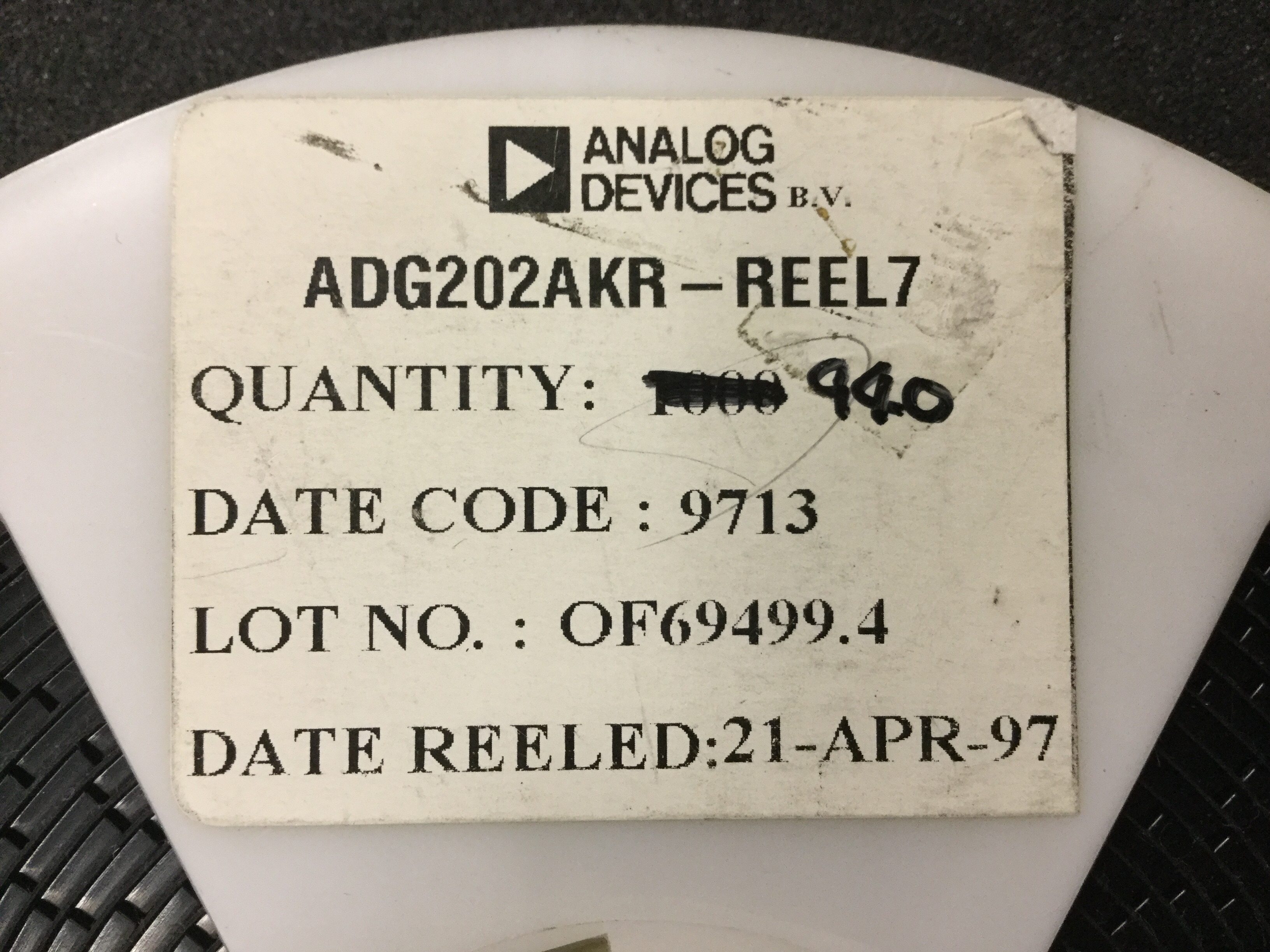

ADG202AKR-REEL7 データシート

Name: ADG202AKR-REEL7
Brand: AD
SKU: 110000084-0000-0000-0000

ADG202AKR-REEL7 - AD の商品詳細ページです。

２営業日以内に回答いたします

ADG202AKR-REEL7 の詳細情報

型番	ADG202AKR-REEL7
メーカー	AD
データシート
Analog IC - Other Type	SPST
JESD-30 Code	R-PDSO-G16
JESD-609 Code	e0
Length	9.9 mm
Moisture Sensitivity Level	1
Neg Supply Voltage-Nom (Vsup)	-15 V
Normal Position	NO V
Number of Channels	1
Number of Functions	1
Number of Terminals	16
Off-state Isolation-Nom	80 dB
On-state Resistance Match-Nom	5 ohm
On-state Resistance-Max (Ron)	90 ohm
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output	SEPARATE OUTPUT V
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP16,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	240
Power Supplies	+-15 V
Qualification Status	Not Qualified
Seated Height-Max	1.75 mm
Sub Category	Multiplexer or Switches
Supply Voltage-Nom (Vsup)	15 V
Surface Mount	YES
Switch-off Time-Max	250 ns
Switch-on Time-Max	300 ns
Switching	BREAK-BEFORE-MAKE V
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Width	3.9 mm

会社名称	アナログ・デバイセズ
設立	1965
所在地	One Technology Way P. O. Box 9106 Norwood, MA 02062-9106 United States
URL	http://www.analog.com/
