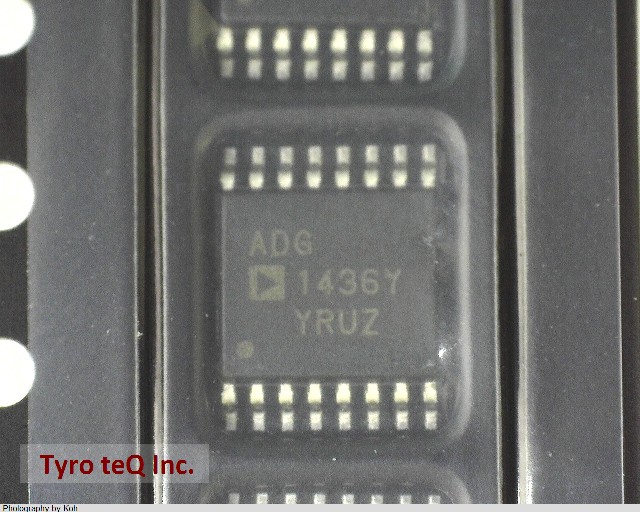

ADG1436YRUZ データシート

Name: ADG1436YRUZ
Brand: AD
SKU: 110159005-0000-0000-0000

ADG1436YRUZ - AD の商品詳細ページです。

２営業日以内に回答いたします

ADG1436YRUZ の詳細情報

型番	ADG1436YRUZ
メーカー	AD
データシート
Additional Feature	CAN ALSO OPERATES AT 12 V AND +/-15 V SUPPLY
Analog IC - Other Type	SPDT
JESD-30 Code	R-PDSO-G16
JESD-609 Code	e3
Length	5 mm
Moisture Sensitivity Level	1
Neg Supply Voltage-Max (Vsup)	-5.5 V
Neg Supply Voltage-Min (Vsup)	-4.5 V
Neg Supply Voltage-Nom (Vsup)	-5 V
Number of Channels	1
Number of Functions	2
Number of Terminals	16
Off-state Isolation-Nom	50 dB
On-state Resistance Match-Nom	0.1 ohm
On-state Resistance-Max (Ron)	4 ohm
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-40 Cel
Output	SEPARATE OUTPUT V
Package Body Material	PLASTIC/EPOXY
Package Code	TSSOP
Package Equivalence Code	TSSOP16,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	+-5/+12/+-15 V
Qualification Status	Not Qualified
Seated Height-Max	1.2 mm
Sub Category	Multiplexer or Switches
Supply Voltage-Max (Vsup)	5.5 V
Supply Voltage-Min (Vsup)	4.5 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Switch-off Time-Max	125 ns
Switch-on Time-Max	105 ns
Switching	BREAK-BEFORE-MAKE V
Technology	CMOS
Temperature Grade	AUTOMOTIVE
Terminal Finish	Matte Tin (Sn)
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Width	4.4 mm
