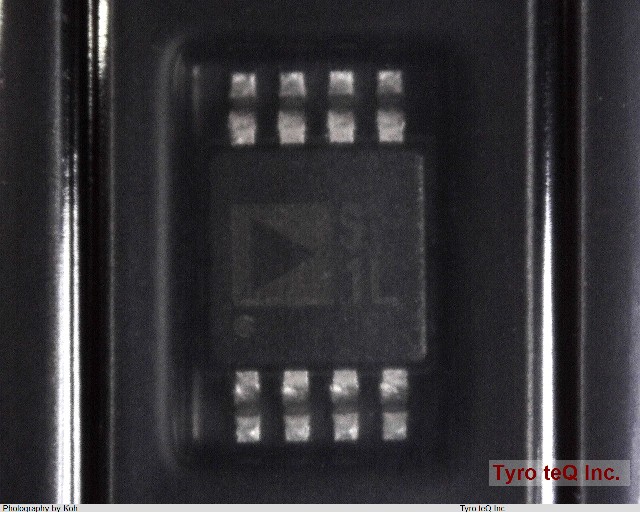

ADG1419BRMZ-REEL7 データシート

Name: ADG1419BRMZ-REEL7
Brand: AD
SKU: 110235803-0000-0000-0000

ADG1419BRMZ-REEL7 - AD の商品詳細ページです。

２営業日以内に回答いたします

ADG1419BRMZ-REEL7 の詳細情報

型番	ADG1419BRMZ-REEL7
メーカー	AD
データシート
Analog IC - Other Type	SPDT
JESD-30 Code	S-PDSO-G8
JESD-609 Code	e3
Length	3 mm
Moisture Sensitivity Level	1
Neg Supply Voltage-Max (Vsup)	-16.5 V
Neg Supply Voltage-Min (Vsup)	-13.5 V
Neg Supply Voltage-Nom (Vsup)	-15 V
Number of Channels	1
Number of Functions	1
Number of Terminals	8
Off-state Isolation-Nom	64 dB
On-state Resistance Match-Nom	0.05 ohm
On-state Resistance-Max (Ron)	3.2 ohm
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	TSSOP
Package Equivalence Code	TSSOP8,.19
Package Shape	SQUARE
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	+-5/+-15/12 V
Qualification Status	Not Qualified
Seated Height-Max	1.1 mm
Sub Category	Multiplexer or Switches
Supply Voltage-Max (Vsup)	16.5 V
Supply Voltage-Min (Vsup)	13.5 V
Supply Voltage-Nom (Vsup)	15 V
Surface Mount	YES
Switch-off Time-Max	180 ns
Switch-on Time-Max	140 ns
Switching	BREAK-BEFORE-MAKE V
Technology	BICMOS
Temperature Grade	AUTOMOTIVE
Terminal Finish	Matte Tin (Sn)
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Width	3 mm
