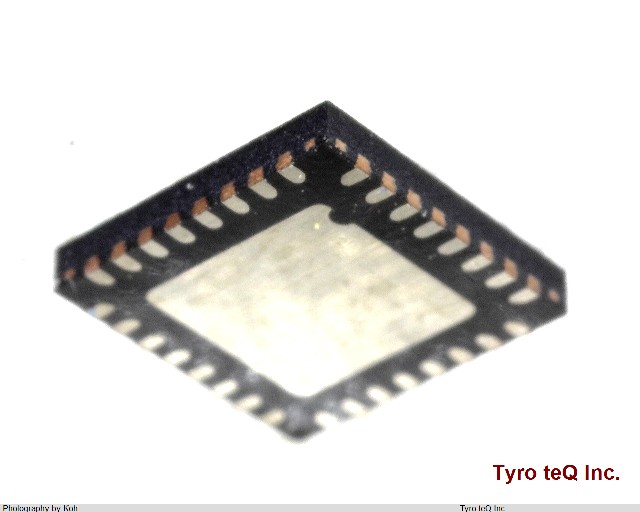

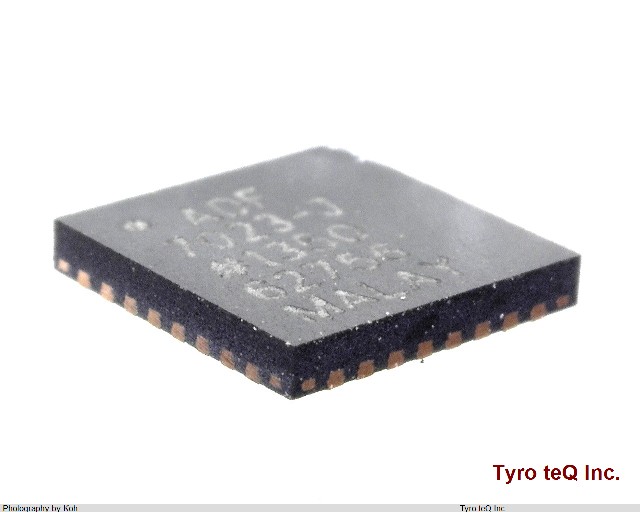

ADF7023-JBCPZ データシート

Name: ADF7023-JBCPZ
Brand: AD
SKU: 110219426-0000-0000-0000

ADF7023-JBCPZ - AD の商品詳細ページです。

２営業日以内に回答いたします

ADF7023-JBCPZ の詳細情報

型番	ADF7023-JBCPZ
メーカー	AD
データシート
JESD-30 Code	S-XQCC-N32
JESD-609 Code	e4
Length	5 mm
Moisture Sensitivity Level	3
Number of Functions	1
Number of Terminals	32
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	UNSPECIFIED
Package Code	HVQCCN
Package Equivalence Code	LCC32,.2SQ,20
Package Shape	SQUARE
Package Style	CHIP CARRIER Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	2.5/3.3 V
Qualification Status	Not Qualified
Seated Height-Max	0.8 mm
Sub Category	Other Telecom ICs
Supply Voltage-Nom	3 V
Surface Mount	YES
Telecom IC Type	TELECOM CIRCUIT
Temperature Grade	INDUSTRIAL
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	NO LEAD
Terminal Pitch	0.5 mm
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	30
Width	5 mm

会社名称	アナログ・デバイセズ
設立	1965
所在地	One Technology Way P. O. Box 9106 Norwood, MA 02062-9106 United States
URL	http://www.analog.com/
