ADDAC71-COB-V データシート

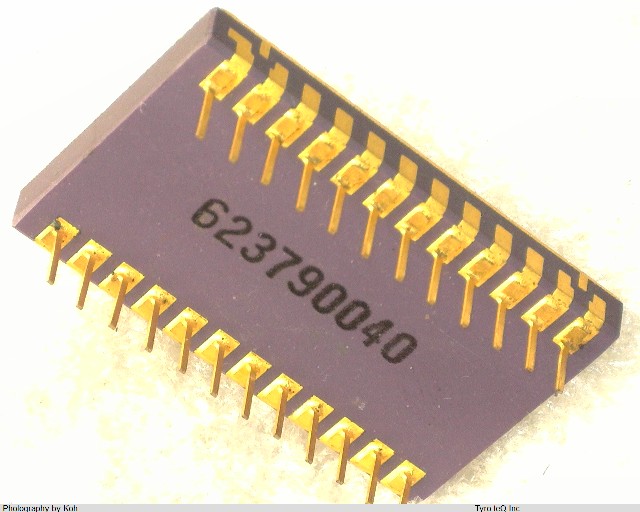

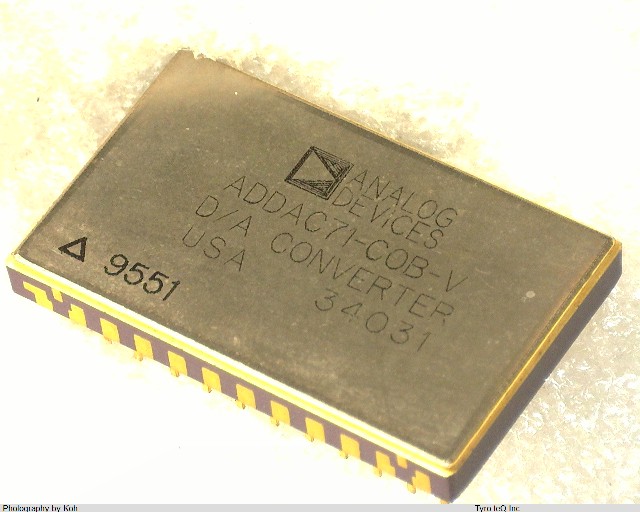

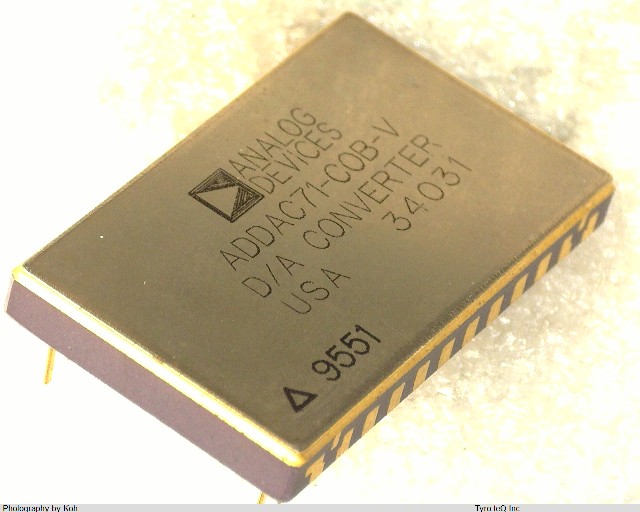

Name: ADDAC71-COB-V
Brand: AD
SKU: 110070539-0000-0000-0000

ADDAC71-COB-V - AD の商品詳細ページです。

２営業日以内に回答いたします

ADDAC71-COB-V の詳細情報

型番	ADDAC71-COB-V
メーカー	AD
データシート
Analog Output Voltage-Max	10 V
Analog Output Voltage-Min	-10 V
Converter Type	D/A CONVERTER
Input Bit Code	COMPLEMENTARY OFFSET BINARY
Input Format	PARALLEL, WORD
JESD-30 Code	R-MDMA-P24
JESD-609 Code	e0
Linearity Error-Max (EL)	0.003 %
Negative Supply Voltage-Nom	-15 V
Number of Bits	16
Number of Functions	1
Number of Terminals	24
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-25 Cel
Package Body Material	METAL
Package Code	DIP
Package Equivalence Code	DIP24,.6
Package Shape	RECTANGULAR
Package Style	MICROELECTRONIC ASSEMBLY Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	5,+-15 V
Qualification Status	Not Qualified
Seated Height-Max	6.35 mm
Settling Time-Max	10 us
Settling Time-Nom (tstl)	5 us
Sub Category	Other Converters
Supply Current-Max	55 mA
Supply Voltage-Nom	15 V
Surface Mount	NO
Technology	HYBRID
Temperature Grade	OTHER
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	PIN/PEG
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	15.24 mm
