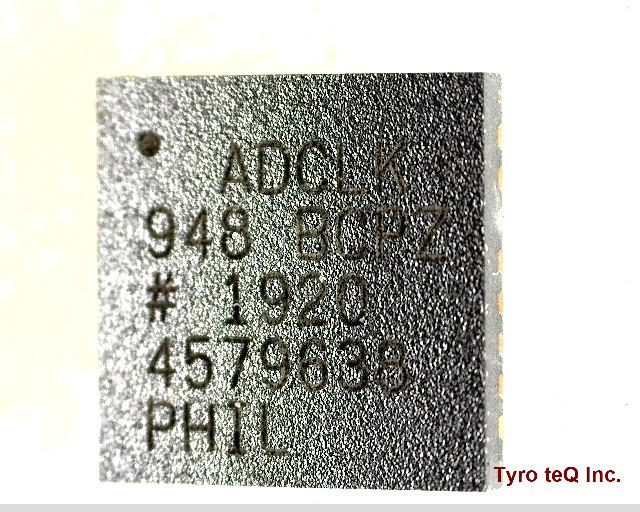

ADCLK948BCPZ データシート

Name: ADCLK948BCPZ
Brand: AD
SKU: 110245645-0000-0000-0000

ADCLK948BCPZ - AD の商品詳細ページです。

２営業日以内に回答いたします

ADCLK948BCPZ の詳細情報

型番	ADCLK948BCPZ
メーカー	AD
データシート
Family	948
Input Conditioning	DIFFERENTIAL
JESD-30 Code	S-XQCC-N32
JESD-609 Code	e3
Length	5 mm
Logic IC Type	LOW SKEW CLOCK DRIVER
Moisture Sensitivity Level	3
Number of Functions	1
Number of Inverted Outputs	0
Number of Terminals	32
Number of True Outputs	8
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	UNSPECIFIED
Package Code	HVQCCN
Package Equivalence Code	LCC32,.2SQ,20
Package Shape	SQUARE
Package Style	CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE Meter
Peak Reflow Temperature (Cel)	260
Propagation Delay (tpd)	0.245 ns
Qualification Status	Not Qualified
Same Edge Skew-Max (tskwd)	0.25 ns
Seated Height-Max	1 mm
Supply Voltage-Max (Vsup)	3.63 V
Supply Voltage-Min (Vsup)	2.97 V
Supply Voltage-Nom (Vsup)	3.3 V
Surface Mount	YES
Technology	BIPOLAR
Temperature Grade	INDUSTRIAL
Terminal Finish	Matte Tin (Sn)
Terminal Form	NO LEAD
Terminal Pitch	0.5 mm
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	40
Width	5 mm
fmax-Min	4500 MHz
