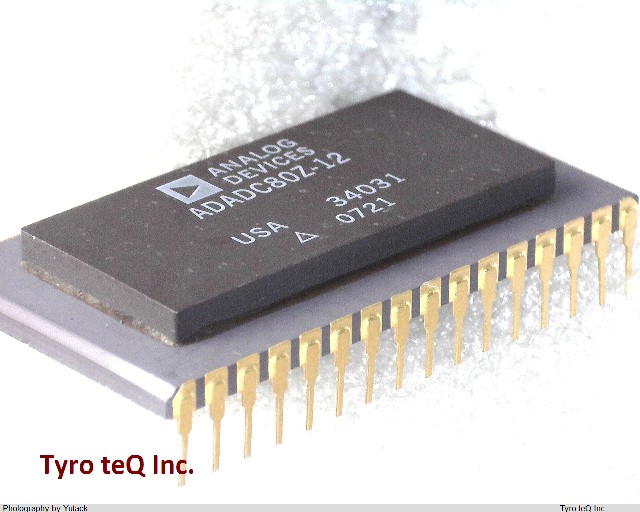

ADADC80Z-12 データシート

Name: ADADC80Z-12
Brand: AD
SKU: 110021400-0000-0000-0000

ADADC80Z-12 - AD の商品詳細ページです。

２営業日以内に回答いたします

ADADC80Z-12 の詳細情報

型番	ADADC80Z-12
メーカー	AD
データシート
Analog Input Voltage-Max	10 V
Analog Input Voltage-Min	-10 V
Conversion Time-Max	25 us
Converter Type	ADC, SUCCESSIVE APPROXIMATION
JESD-30 Code	R-CDIP-T32
JESD-609 Code	e4
Length	30.48 mm
Linearity Error-Max (EL)	0.012 %
Negative Supply Voltage-Nom	-15 V
Number of Analog In Channels	2
Number of Bits	12
Number of Functions	1
Number of Terminals	32
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-25 Cel
Output Bit Code	COMPLEMENTARY BINARY, COMPLEMENTARY 2'S COMPLEMENT, COMPLEMENTARY OFFSET BINARY
Output Format	PARALLEL, WORD
Package Body Material	CERAMIC, METAL-SEALED COFIRED
Package Code	DIP
Package Equivalence Code	DIP32,.9
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	5,+-12/+-15 V
Qualification Status	Not Qualified
Sample-and-Hold/Track-and-Hold	SAMPLE
Seated Height-Max	7.11 mm
Sub Category	Analog to Digital Converters
Supply Voltage-Nom	15 V
Surface Mount	NO
Technology	HYBRID
Temperature Grade	OTHER
Terminal Finish	Gold (Au)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	15.24 mm
