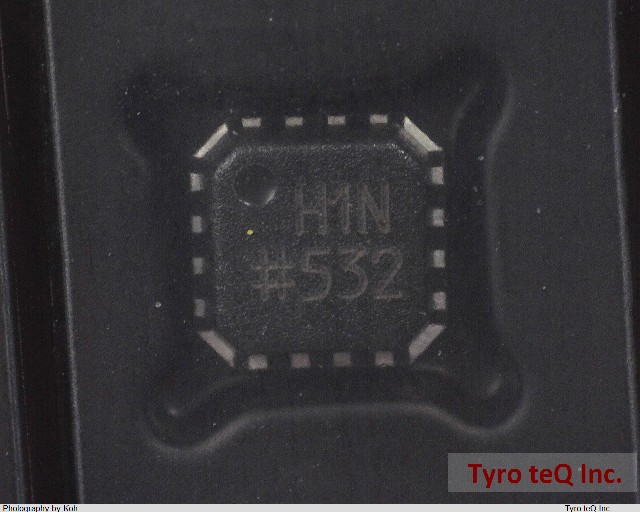

ADA4927-1YCPZ-R7 データシート

Name: ADA4927-1YCPZ-R7
Brand: AD
SKU: 110142772-0000-0000-0000

ADA4927-1YCPZ-R7 - AD の商品詳細ページです。

２営業日以内に回答いたします

ADA4927-1YCPZ-R7 の詳細情報

型番	ADA4927-1YCPZ-R7
メーカー	AD
データシート
Differential Output	YES
Driver Number of Bits	1
Input Characteristics	DIFFERENTIAL
Interface IC Type	LINE DRIVER
Interface Standard	GENERAL PURPOSE
JESD-30 Code	S-XQCC-N16
JESD-609 Code	e3
Length	3 mm
Moisture Sensitivity Level	3
Negative Supply Voltage-Nom	-5 V
Number of Functions	1
Number of Terminals	16
Operating Temperature-Max	105 Cel
Operating Temperature-Min	-40 Cel
Out Swing-Min	7.6 V
Output Characteristics	DIFFERENTIAL
Output Polarity	COMPLEMENTARY
Package Body Material	UNSPECIFIED
Package Code	HVQCCN
Package Equivalence Code	LCC16,.12SQ,31
Package Shape	SQUARE
Package Style	CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE Meter
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Receive Delay-Max	0 ns
Seated Height-Max	0.8 mm
Supply Voltage-Max	11 V
Supply Voltage-Min	4.5 V
Supply Voltage-Nom	5 V
Surface Mount	YES
Technology	BIPOLAR
Temperature Grade	INDUSTRIAL
Terminal Finish	Matte Tin (Sn)
Terminal Form	NO LEAD
Terminal Pitch	0.5 mm
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	40
Width	3 mm
