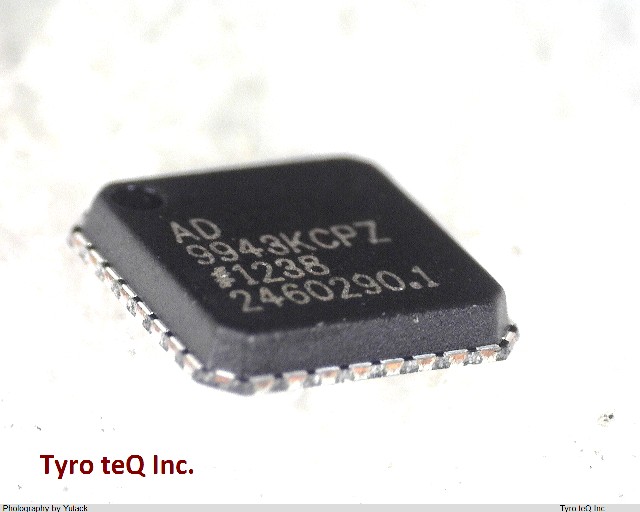

AD9943KCP データシート

Name: AD9943KCP
Brand: AD
SKU: 110021032-0000-0000-0000

AD9943KCP - AD の商品詳細ページです。

２営業日以内に回答いたします

AD9943KCP の詳細情報

型番	AD9943KCP
メーカー	AD
データシート
Consumer IC Type	CONSUMER CIRCUIT
JESD-30 Code	S-XQCC-N32
JESD-609 Code	e0
Length	5 mm
Moisture Sensitivity Level	3
Number of Functions	1
Number of Terminals	32
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-20 Cel
Package Body Material	UNSPECIFIED
Package Code	HVQCCN
Package Shape	SQUARE
Package Style	CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE Meter
Peak Reflow Temperature (Cel)	240
Qualification Status	Not Qualified
Seated Height-Max	1 mm
Supply Voltage-Max (Vsup)	3.6 V
Supply Voltage-Min (Vsup)	2.7 V
Surface Mount	YES
Temperature Grade	OTHER
Terminal Finish	Matte Tin (Sn)
Terminal Form	NO LEAD
Terminal Pitch	0.5 mm
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	30
Width	5 mm

会社名称	アナログ・デバイセズ
設立	1965
所在地	One Technology Way P. O. Box 9106 Norwood, MA 02062-9106 United States
URL	http://www.analog.com/
