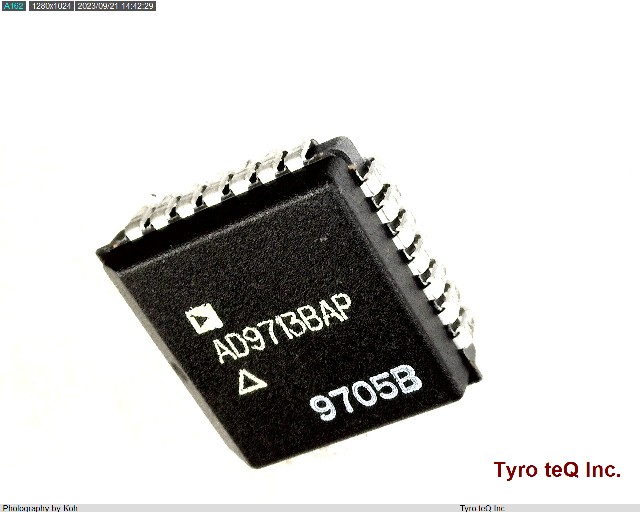

AD9713BAP
1
-
- 個
２営業日以内に回答いたします
AD9713BAP の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | AD9713BAP |
|---|---|
| メーカー | AD |
| Converter Type | D/A CONVERTER |
| DLA Qualification | Not Qualified |
| Input Bit Code | BINARY |
| Input Format | PARALLEL, WORD |
| J-STD-609 Code | e0 |
| JESD-30 Code | S-PQCC-J28 |
| JESD-609 Code | e0 |
| Length | 11.5062 mm |
| Length (mm) | 11.5062 |
| Linearity Error-Max (EL) | 0.0488 % |
| Linearity Error-Max (EL) (%) | 0.0488 |
| Negative Supply Voltage-Nom | -5.2 V |
| Negative Supply Voltage-Nom (V) | -5.2 |
| Number of Bits | 12 |
| Number of Functions | 1 |
| Number of Terminals | 28 |
| Operating Temperature-Max | 85 Cel |
| Operating Temperature-Max (Cel) | 85 |
| Operating Temperature-Min | -25 Cel |
| Operating Temperature-Min (Cel) | -25 |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | QCCJ |
| Package Equivalence Code | LDCC28,.5SQ |
| Package Shape | SQUARE |
| Package Style | CHIP CARRIER Meter |
| Peak Reflow Temperature (Cel) | 220 |
| Power Supplies | 5,-5.2 V |
| Power Supplies (V) | 5,-5.2 |
| Qualification Status | Not Qualified |
| Seated Height-Max | 4.57 mm |
| Seated Height-Max (mm) | 4.57 |
| Settling Time-Nom (tstl) | 0.027 us |
| Settling Time-Nom (tstl) (us) | 0.027 |
| Sub Category | Other Converters |
| Supply Current-Max | 188 mA |
| Supply Current-Max (mA) | 188 |
| Supply Voltage-Nom | 5 V |
| Supply Voltage-Nom (V) | 5 |
| Surface Mount | YES |
| Technology | BIPOLAR |
| Temperature Grade | OTHER |
| Terminal Finish | TIN LEAD |
| Terminal Form | J BEND |
| Terminal Pitch | 1.27 mm |
| Terminal Pitch (mm) | 1.27 |
| Terminal Position | QUAD |
| Time@Peak Reflow Temperature-Max (s) | 30 |
| Width | 11.5062 mm |
| Width (mm) | 11.5062 |
| 会社名称 | アナログ・デバイセズ |
|---|---|
| 設立 | 1965 |
| 所在地 | One Technology Way P. O. Box 9106 Norwood, MA 02062-9106 United States |
| URL | http://www.analog.com/ |
