AD9618JN データシート Ad02

AD9618JN - AD の商品詳細ページです。

1

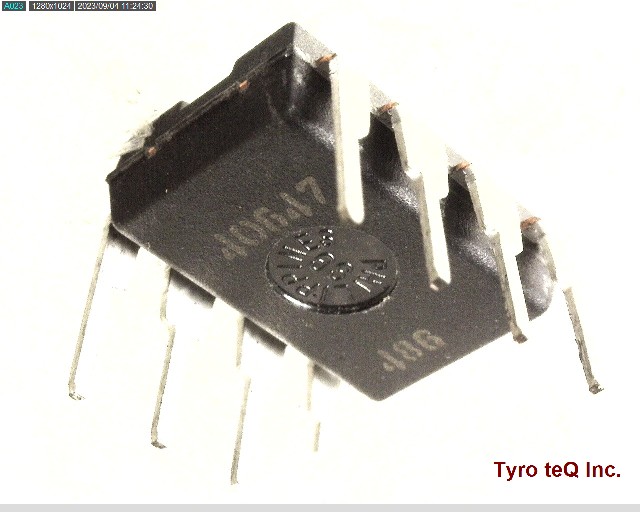

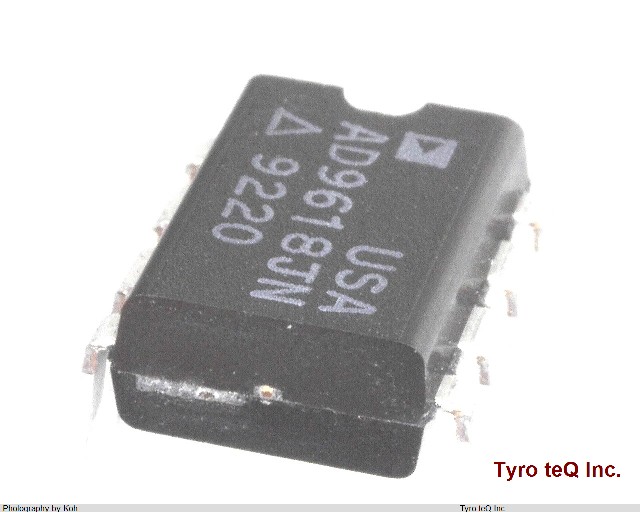

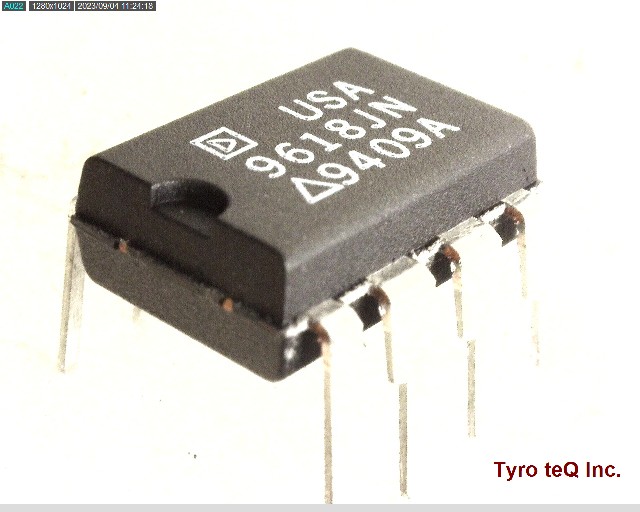

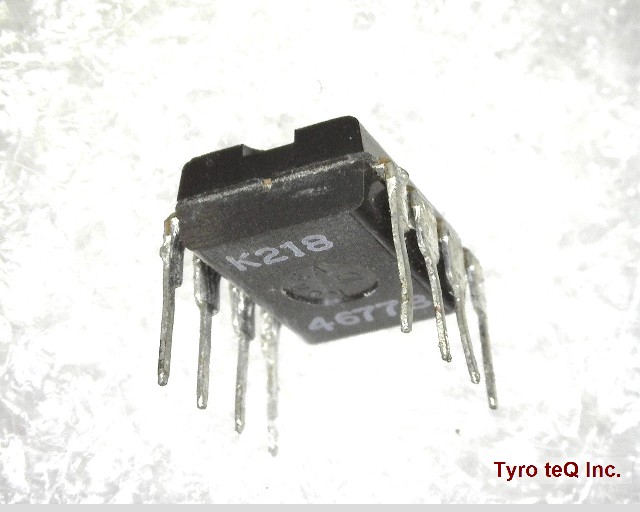

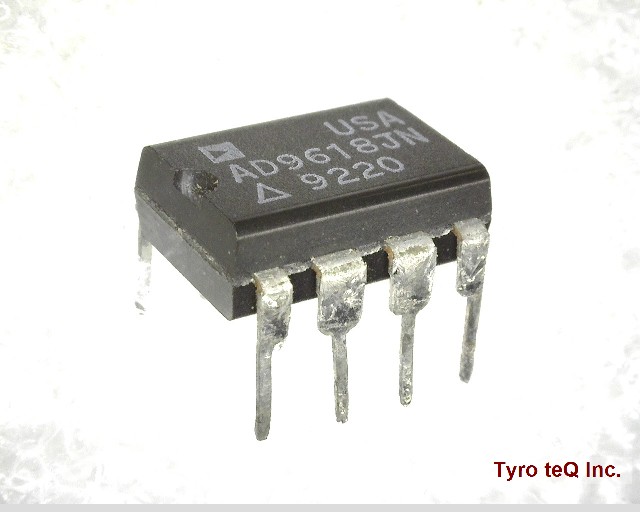

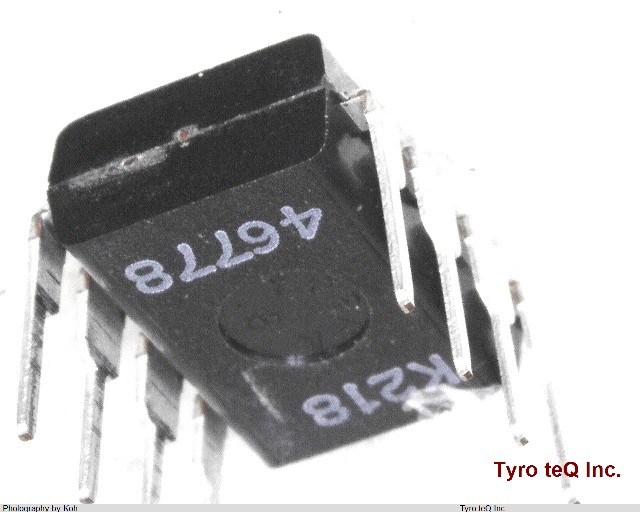

AD9618JN
  • AD9618JN
  • AD9618JN
  • AD9618JN
  • AD9618JN
  • AD9618JN
  • AD9618JN
  • no_image
  • no_image
  • no_image
  • no_image
  • 個
２営業日以内に回答いたします
この商品のお問い合わせ

AD9618JN の詳細情報

  • 仕様・詳細
  • メーカー情報
型番AD9618JN
メーカーAD
データシートProduct_list_pdf
Amplifier Type OPERATIONAL AMPLIFIER
Architecture CURRENT-FEEDBACK
Average Bias Current-Max (IIB) 45 uA
Bias Current-Max (IIB) @25C 45 uA
Common-mode Reject Ratio-Min 48 dB
Common-mode Reject Ratio-Nom 52 dB
Frequency Compensation YES (AVCL>=5)
Input Offset Voltage-Max 2200 uV
JESD-30 Code R-PDIP-T8
JESD-609 Code e0
Length 9.88 mm
Low-Offset NO
Neg Supply Voltage Limit-Max -7 V
Neg Supply Voltage-Nom (Vsup) -5 V
Number of Functions 1
Number of Terminals 8
Operating Temperature-Max 70 Cel
Operating Temperature-Min 0 Cel
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP8,.3
Package Shape RECTANGULAR
Package Style IN-LINE Meter
Power Supplies +-5 V
Qualification Status Not Qualified
Seated Height-Max 5.33 mm
Slew Rate-Nom 1.8 V/us
Sub Category Operational Amplifiers
Supply Current-Max 43 mA
Supply Voltage Limit-Max 7 V
Supply Voltage-Nom (Vsup) 5 V
Surface Mount NO
Technology BIPOLAR
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Unity Gain BW-Nom 8000000 kHz
Wideband YES
Width 7.62 mm
会社名称アナログ・デバイセズ
設立1965
所在地One Technology Way P. O. Box 9106 Norwood, MA 02062-9106 United States
URLhttp://www.analog.com/
