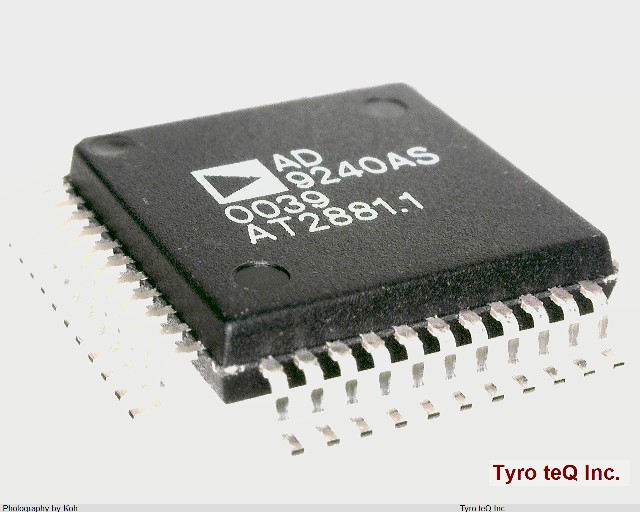

AD9240AS データシート

Name: AD9240AS
Brand: AD
SKU: 110020124-0000-0000-0000

AD9240AS - AD の商品詳細ページです。

２営業日以内に回答いたします

AD9240AS の詳細情報

型番	AD9240AS
メーカー	AD
データシート
Analog Input Voltage-Max	5 V
Analog Input Voltage-Min	-5 V
Conversion Time-Max	0.1 us
Converter Type	ADC, FLASH METHOD
JESD-30 Code	S-PQFP-G44
JESD-609 Code	e0
Length	10 mm
Moisture Sensitivity Level	3
Number of Analog In Channels	1
Number of Bits	14
Number of Functions	1
Number of Terminals	44
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-55 Cel
Output Bit Code	BINARY
Output Format	PARALLEL, WORD
Package Body Material	PLASTIC/EPOXY
Package Code	QFP
Package Equivalence Code	QFP44,.5SQ,32
Package Shape	SQUARE
Package Style	FLATPACK Meter
Peak Reflow Temperature (Cel)	240
Power Supplies	5 V
Qualification Status	Not Qualified
Sample Rate	10 MHz
Sample-and-Hold/Track-and-Hold	SAMPLE
Seated Height-Max	2.45 mm
Sub Category	Analog to Digital Converters
Supply Voltage-Nom	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	OTHER
Terminal Finish	Matte Tin (Sn)
Terminal Form	GULL WING
Terminal Pitch	0.8 mm
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	30
Width	10 mm
