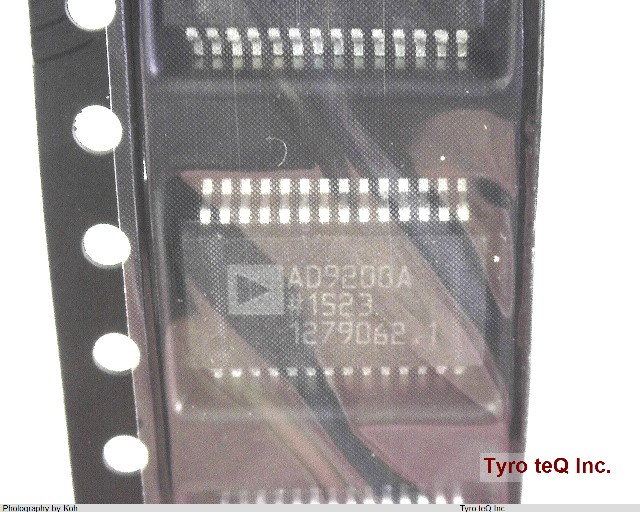

AD9200ARS データシート

Name: AD9200ARS
Brand: AD
SKU: 110002851-0000-0000-0000

AD9200ARS - AD の商品詳細ページです。

２営業日以内に回答いたします

AD9200ARS の詳細情報

型番	AD9200ARS
メーカー	AD
データシート
Analog Input Voltage-Max	5.5 V
Analog Input Voltage-Min	0 V
Conversion Time-Max	0.05 us
Converter Type	ADC, PROPRIETARY METHOD
JESD-30 Code	R-PDSO-G28
JESD-609 Code	e0
Length	10.2 mm
Linearity Error-Max (EL)	0.1953 %
Moisture Sensitivity Level	1
Number of Analog In Channels	1
Number of Bits	10
Number of Functions	1
Number of Terminals	28
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Bit Code	BINARY
Output Format	PARALLEL, WORD
Package Body Material	PLASTIC/EPOXY
Package Code	SSOP
Package Equivalence Code	SSOP28,.3
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	220
Power Supplies	3/5 V
Qualification Status	Not Qualified
Sample Rate	20 MHz
Sample-and-Hold/Track-and-Hold	SAMPLE
Seated Height-Max	1.98 mm
Sub Category	Analog to Digital Converters
Supply Voltage-Nom	3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Matte Tin (Sn)
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Width	5.29 mm

会社名称	アナログ・デバイセズ
設立	1965
所在地	One Technology Way P. O. Box 9106 Norwood, MA 02062-9106 United States
URL	http://www.analog.com/
