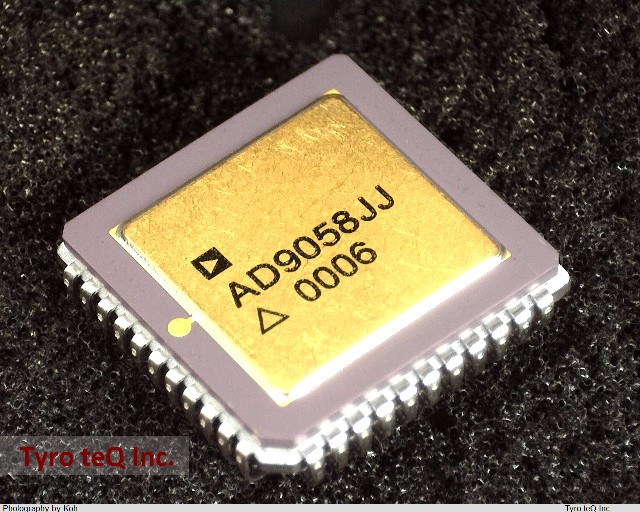

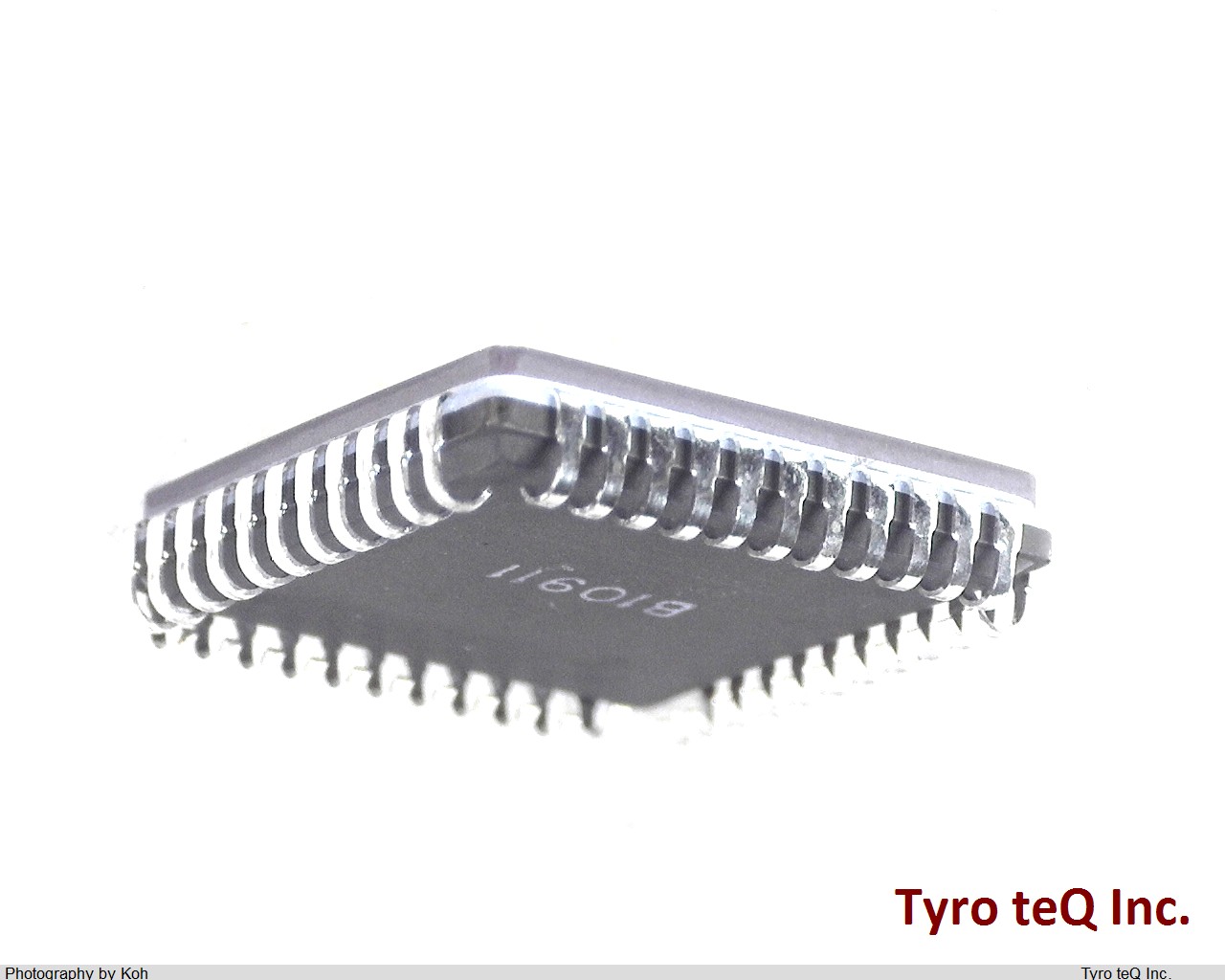

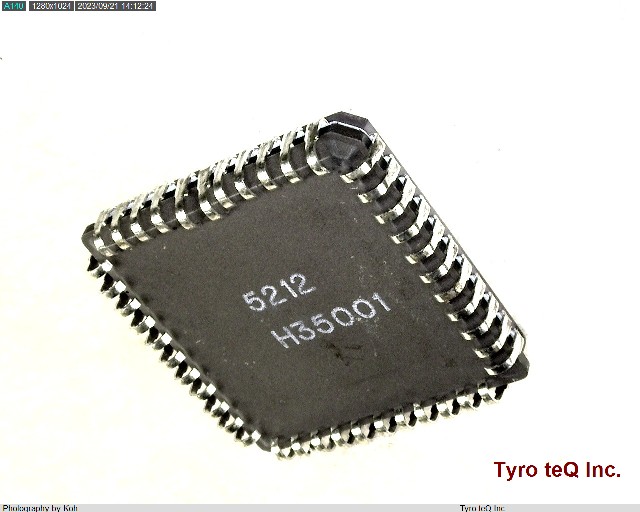

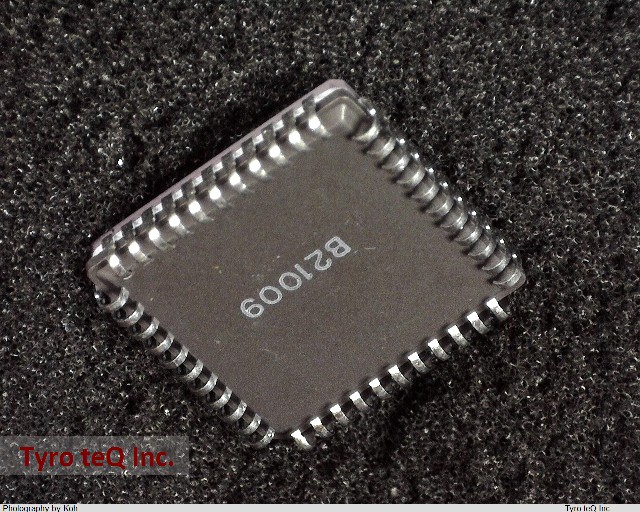

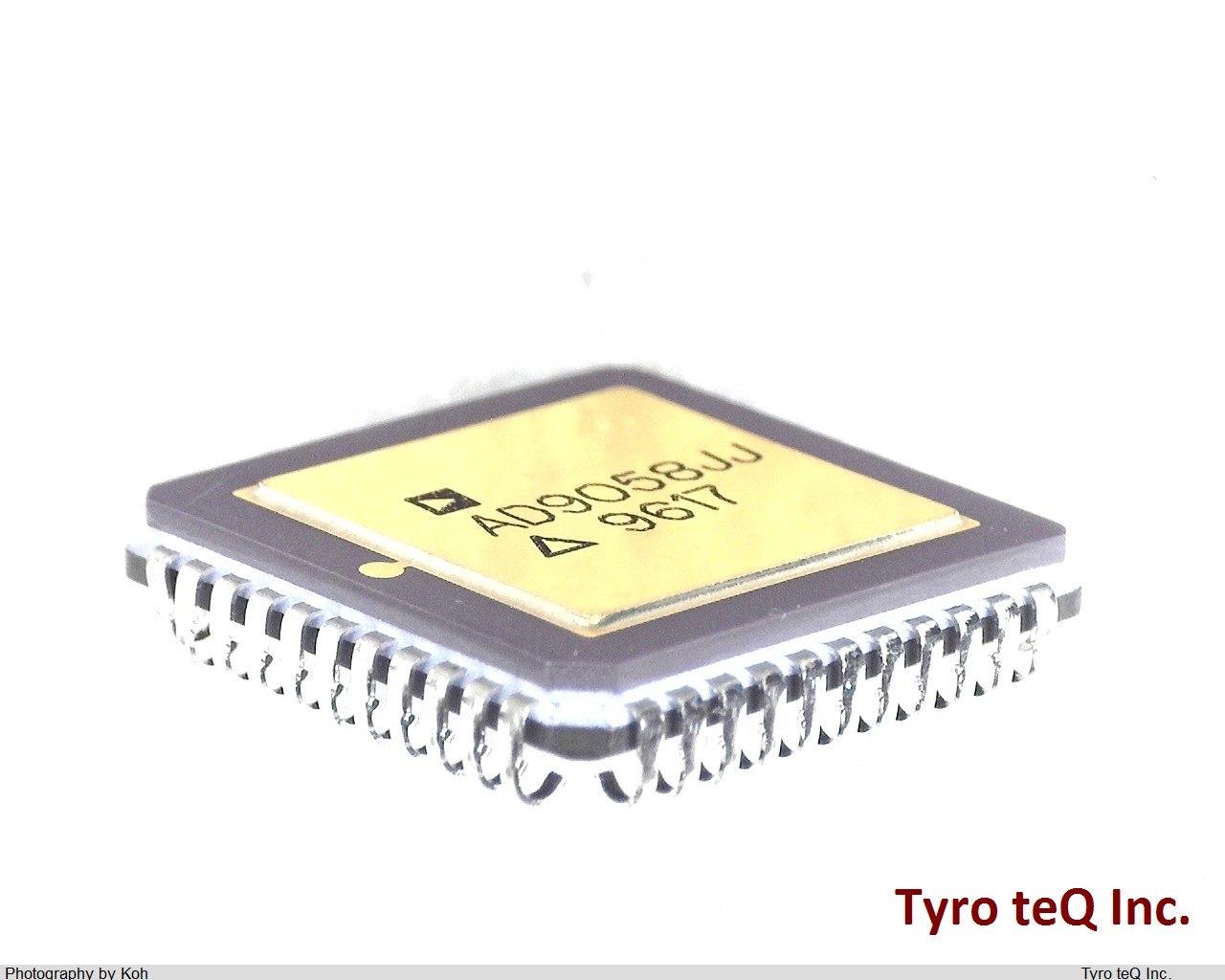

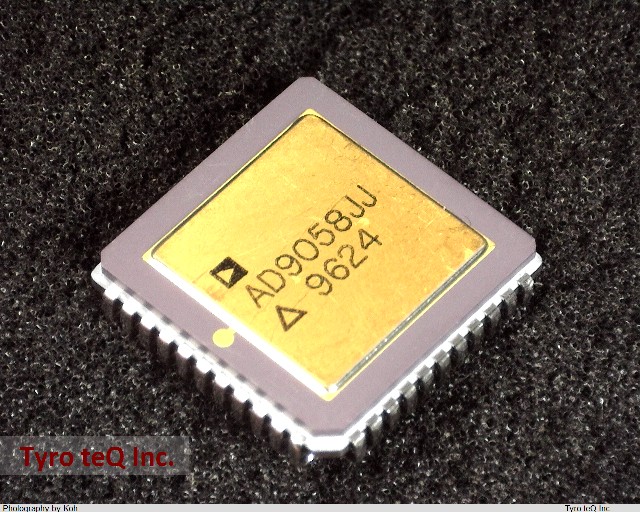

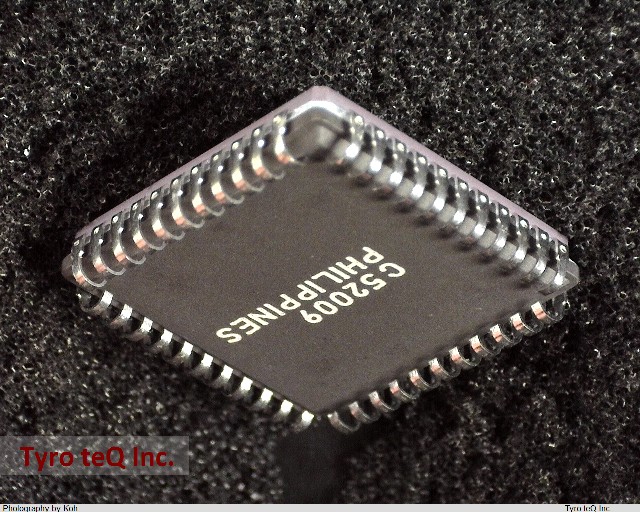

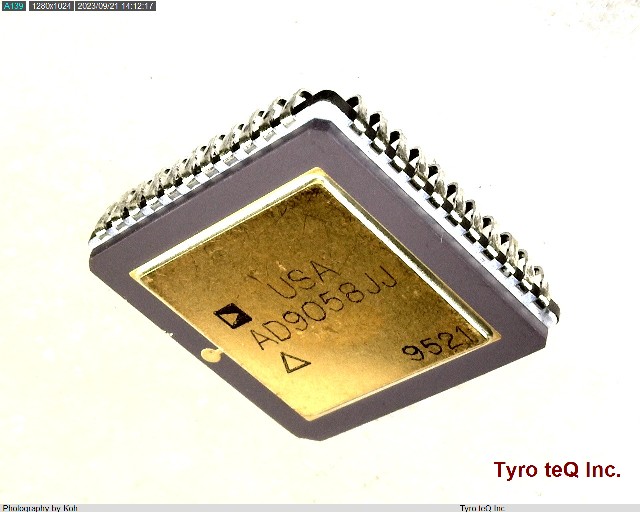

AD9058JJ データシート

Name: AD9058JJ
Brand: AD
SKU: 110002847-0000-0000-0000

AD9058JJ - AD の商品詳細ページです。

２営業日以内に回答いたします

AD9058JJ の詳細情報

型番	AD9058JJ
メーカー	AD
データシート
Analog Input Voltage-Max	1 V
Analog Input Voltage-Min	-1 V
Converter Type	ADC, PROPRIETARY METHOD
JESD-30 Code	S-CQCC-J44
JESD-609 Code	e0
Length	16.51 mm
Linearity Error-Max (EL)	0.5469 %
Negative Supply Voltage-Nom	-5 V
Number of Analog In Channels	1
Number of Bits	8
Number of Functions	2
Number of Terminals	44
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Output Bit Code	BINARY
Output Format	PARALLEL, 8 BITS
Package Body Material	CERAMIC, METAL-SEALED COFIRED
Package Code	QCCJ
Package Equivalence Code	LCC44,.65SQ
Package Shape	SQUARE
Package Style	CHIP CARRIER Meter
Peak Reflow Temperature (Cel)	220
Power Supplies	+-5 V
Qualification Status	Not Qualified
Sample Rate	50 MHz
Seated Height-Max	3.43 mm
Sub Category	Analog to Digital Converters
Supply Current-Max	154 mA
Supply Voltage-Nom	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	J BEND
Terminal Pitch	1.27 mm
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	30
Width	16.51 mm
