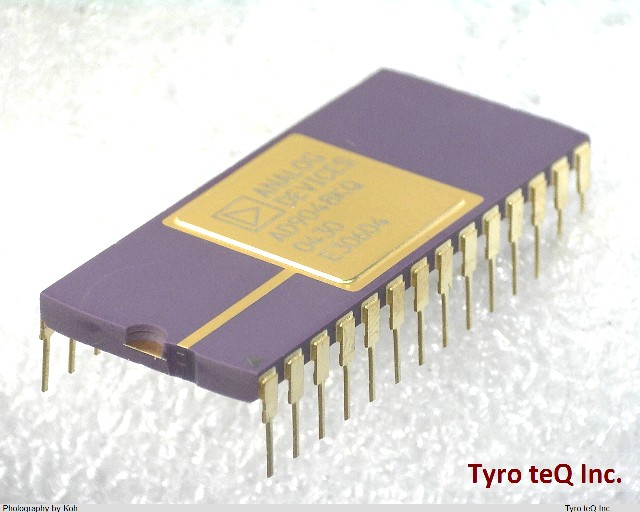

AD9048KQ データシート

Name: AD9048KQ
Brand: AD
SKU: 110019870-0000-0000-0000

AD9048KQ - AD の商品詳細ページです。

２営業日以内に回答いたします

AD9048KQ の詳細情報

型番	AD9048KQ
メーカー	AD
データシート
Analog Input Voltage-Max	0.1 V
Analog Input Voltage-Min	-2.1 V
Conversion Time-Max	0.029 us
Converter Type	ADC, FLASH METHOD
JESD-30 Code	R-GDIP-T28
JESD-609 Code	e0
Linearity Error-Max (EL)	0.293 %
Negative Supply Voltage-Nom	-5.2 V
Number of Analog In Channels	1
Number of Bits	8
Number of Functions	1
Number of Terminals	28
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Output Bit Code	BINARY, OFFSET 2'S COMPLEMENT
Output Format	PARALLEL, 8 BITS
Package Body Material	CERAMIC, GLASS-SEALED
Package Code	DIP
Package Equivalence Code	DIP28,.6
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	5,-5.2 V
Qualification Status	Not Qualified
Sample Rate	38 MHz
Seated Height-Max	5.72 mm
Sub Category	Analog to Digital Converters
Supply Voltage-Nom	5 V
Surface Mount	NO
Technology	BIPOLAR
Temperature Grade	COMMERCIAL
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	15.24 mm
