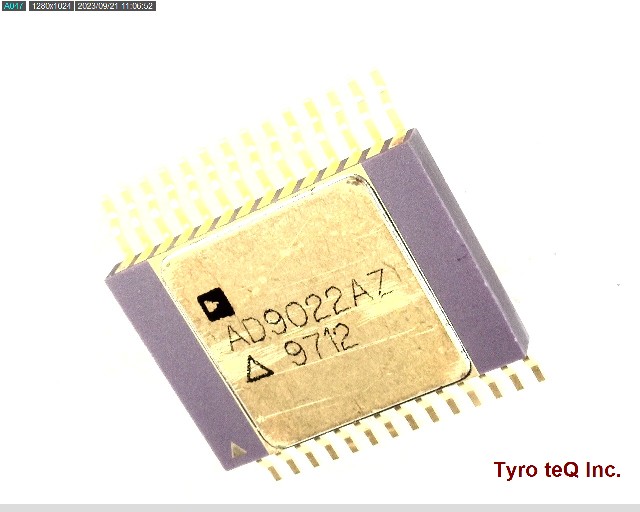

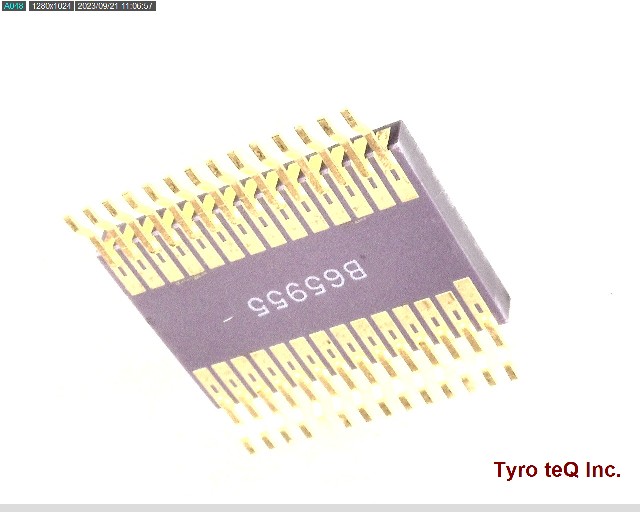

AD9022AZ

Name: AD9022AZ
Brand: AD
SKU: 400067377-0000-0000-0000

AD9022AZ - AD の商品詳細ページです。

２営業日以内に回答いたします

AD9022AZ の詳細情報

型番	AD9022AZ
メーカー	AD
Analog Input Voltage-Max	1.024 V
Analog Input Voltage-Min	-1.024 V
Converter Type	ADC, PROPRIETARY METHOD
JESD-30 Code	R-CDSO-G28
JESD-609 Code	e0
Length	18.29 mm
Linearity Error-Max (EL)	0.0732 %
Negative Supply Voltage-Nom	-5.2 V
Number of Analog In Channels	1
Number of Bits	12
Number of Functions	1
Number of Terminals	28
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-25 Cel
Output Bit Code	OFFSET BINARY
Output Format	PARALLEL, WORD
Package Body Material	CERAMIC, METAL-SEALED COFIRED
Package Code	SOP
Package Equivalence Code	SOP28,.76
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Power Supplies	5,-5.2 V
Qualification Status	Not Qualified
Sample Rate	20 MHz
Sample-and-Hold/Track-and-Hold	TRACK
Seated Height-Max	4.191 mm
Sub Category	Analog to Digital Converters
Supply Voltage-Nom	5 V
Surface Mount	YES
Technology	BIPOLAR
Temperature Grade	OTHER
Terminal Finish	TIN LEAD
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Width	12.7 mm
