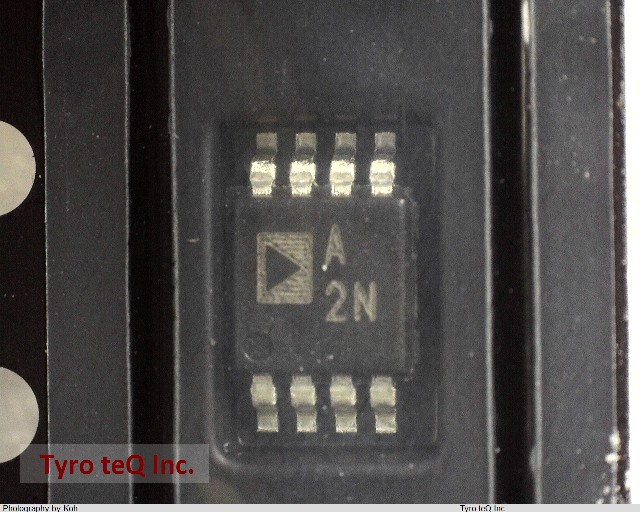

AD8657ARMZ データシート

Name: AD8657ARMZ
Brand: AD
SKU: 110174296-0000-0000-0000

AD8657ARMZ - AD の商品詳細ページです。

２営業日以内に回答いたします

AD8657ARMZ の詳細情報

型番	AD8657ARMZ
メーカー	AD
データシート
Amplifier Type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB)	0.0026 uA
Bias Current-Max (IIB) @25C	2.0E-5 uA
Common-mode Reject Ratio-Nom	105 dB
Frequency Compensation	YES
Input Offset Voltage-Max	9000 uV
JESD-30 Code	S-PDSO-G8
JESD-609 Code	e3
Length	3 mm
Low-Bias	YES
Low-Offset	NO
Micropower	YES
Moisture Sensitivity Level	1
Number of Functions	2
Number of Terminals	8
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	TSSOP
Package Equivalence Code	TSSOP8,.19
Package Shape	SQUARE
Package Style	SMALL OUTLINE Meter
Packing Method	TAPE AND REEL
Peak Reflow Temperature (Cel)	260
Power Supplies	+-1.35/+-9/2.7/18 V
Qualification Status	Not Qualified
Seated Height-Max	1.1 mm
Slew Rate-Nom	60000 V/us
Sub Category	Operational Amplifier
Supply Current-Max	0.066 mA
Supply Voltage Limit-Max	20.5 V
Supply Voltage-Nom (Vsup)	10 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	AUTOMOTIVE
Terminal Finish	Matte Tin (Sn)
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Unity Gain BW-Nom	200 kHz
Voltage Gain-Min	1780
Width	3 mm
