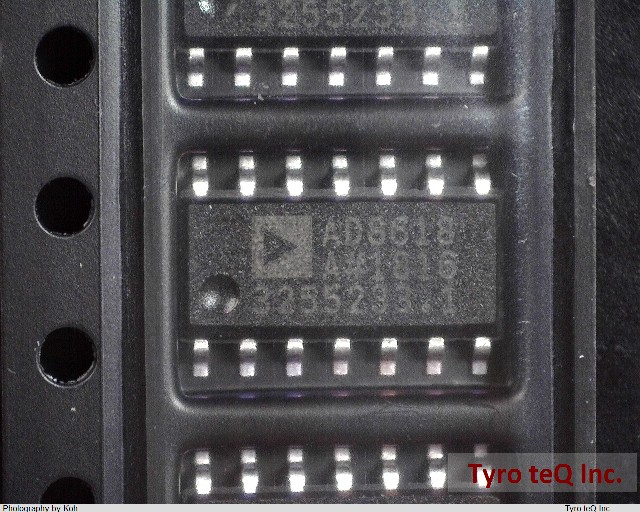

AD8618ARZ-REEL7
  • AD8618ARZ-REEL7
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • 個
２営業日以内に回答いたします
この商品のお問い合わせ

AD8618ARZ-REEL7 の詳細情報

  • 仕様・詳細
  • メーカー情報
型番AD8618ARZ-REEL7
メーカーAD
データシートProduct_list_pdf
Amplifier Type OPERATIONAL AMPLIFIER
Architecture VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB) 0.00055 uA
Bias Current-Max (IIB) @25C 1.0E-6 uA
Common-mode Reject Ratio-Min 80 dB
Common-mode Reject Ratio-Nom 100 dB
Frequency Compensation YES
Input Offset Current-Max (IIO) 5.0E-7 uA
Input Offset Voltage-Max 60 uV
JESD-30 Code R-PDSO-G14
JESD-609 Code e3
Length 8.65 mm
Low-Bias YES
Low-Offset YES
Micropower NO
Moisture Sensitivity Level 1
Number of Functions 4
Number of Terminals 14
Operating Temperature-Max 125 Cel
Operating Temperature-Min -40 Cel
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP14,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE Meter
Packing Method REEL
Peak Reflow Temperature (Cel) 260
Power NO
Power Supplies 2.7/5 V
Programmable Power NO
Qualification Status Not Qualified
Seated Height-Max 1.75 mm
Slew Rate-Nom 12 V/us
Sub Category Operational Amplifier
Supply Current-Max 10 mA
Supply Voltage Limit-Max 6 V
Supply Voltage-Nom (Vsup) 5 V
Surface Mount YES
Technology CMOS
Temperature Grade AUTOMOTIVE
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Unity Gain BW-Nom 24 kHz
Voltage Gain-Min 1500000
Wideband NO
Width 3.9 mm
会社名称アナログ・デバイセズ
設立1965
所在地One Technology Way P. O. Box 9106 Norwood, MA 02062-9106 United States
URLhttp://www.analog.com/
