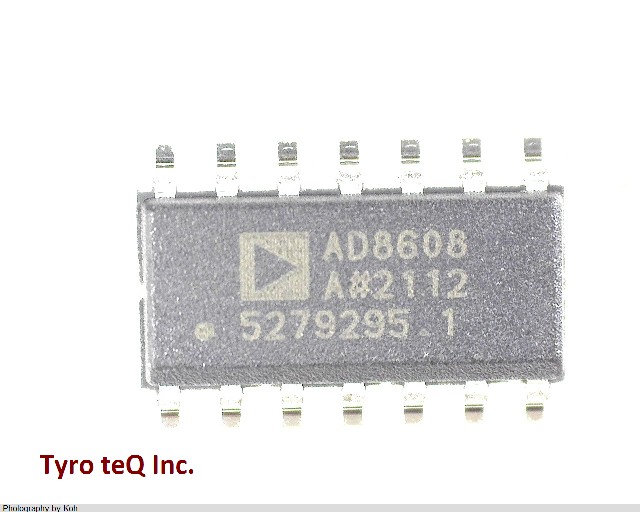

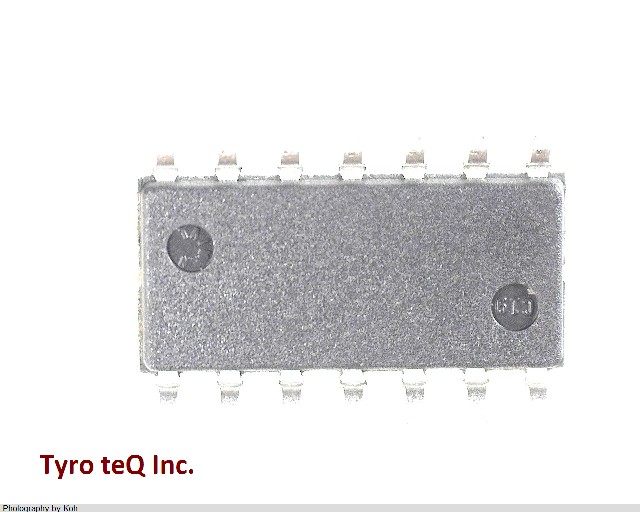

AD8608ARZ データシート

Name: AD8608ARZ
Brand: AD
SKU: 110019571-0000-0000-0000

AD8608ARZ - AD の商品詳細ページです。

２営業日以内に回答いたします

AD8608ARZ の詳細情報

型番	AD8608ARZ
メーカー	AD
データシート
Amplifier Type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB)	0.0003 uA
Bias Current-Max (IIB) @25C	1.0E-6 uA
Common-mode Reject Ratio-Nom	90 dB
Frequency Compensation	YES
Input Offset Voltage-Max	750 uV
JESD-30 Code	R-PDSO-G14
JESD-609 Code	e3
Length	8.65 mm
Low-Bias	YES
Low-Offset	YES
Moisture Sensitivity Level	1
Number of Functions	4
Number of Terminals	14
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP14,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Packing Method	TAPE AND REEL
Peak Reflow Temperature (Cel)	260
Power Supplies	2.7/5 V
Qualification Status	Not Qualified
Seated Height-Max	1.75 mm
Slew Rate-Nom	5 V/us
Sub Category	Operational Amplifier
Supply Current-Max	6 mA
Supply Voltage Limit-Max	6 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	AUTOMOTIVE
Terminal Finish	Matte Tin (Sn)
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Unity Gain BW-Nom	10000 kHz
Voltage Gain-Min	110000
Width	3.9 mm
