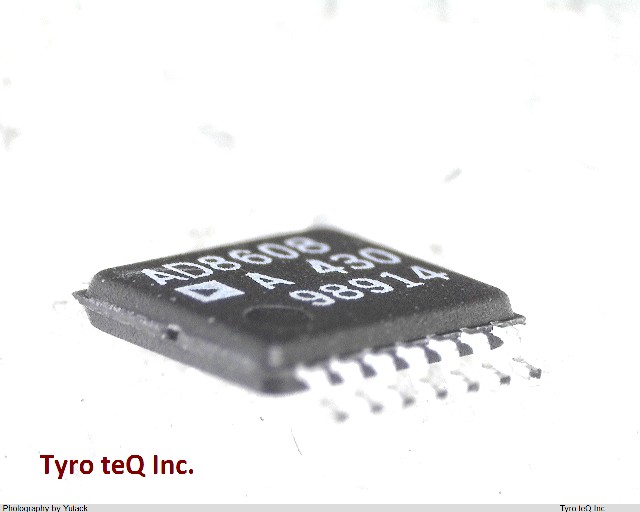

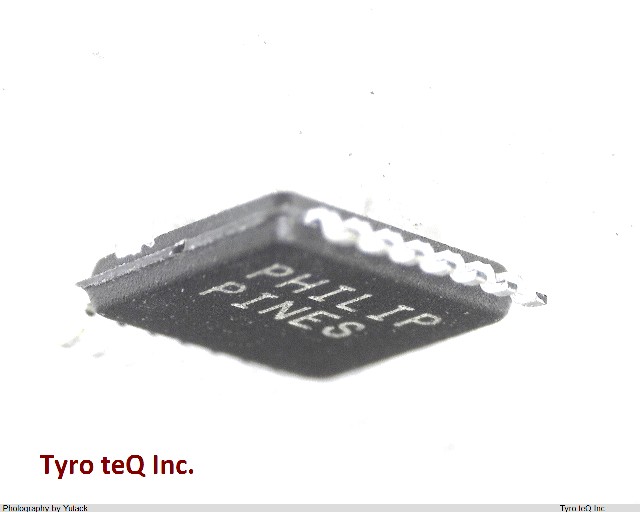

AD8608ARU データシート

Name: AD8608ARU
Brand: AD
SKU: 110019570-0000-0000-0000

AD8608ARU - AD の商品詳細ページです。

２営業日以内に回答いたします

AD8608ARU の詳細情報

型番	AD8608ARU
メーカー	AD
データシート
Amplifier Type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB)	0.0003 uA
Bias Current-Max (IIB) @25C	1.0E-6 uA
Common-mode Reject Ratio-Nom	90 dB
Frequency Compensation	YES
Input Offset Voltage-Max	750 uV
JESD-30 Code	R-PDSO-G14
JESD-609 Code	e0
Length	5 mm
Low-Bias	YES
Low-Offset	YES
Moisture Sensitivity Level	1
Number of Functions	4
Number of Terminals	14
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	TSSOP
Package Equivalence Code	TSSOP14,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH Meter
Packing Method	TAPE AND REEL
Peak Reflow Temperature (Cel)	240
Power Supplies	2.7/5 V
Qualification Status	Not Qualified
Seated Height-Max	1.2 mm
Slew Rate-Nom	5 V/us
Sub Category	Operational Amplifier
Supply Current-Max	6 mA
Supply Voltage Limit-Max	6 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	AUTOMOTIVE
Terminal Finish	Matte Tin (Sn)
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Unity Gain BW-Nom	10000 kHz
Voltage Gain-Min	110000
Width	4.4 mm
