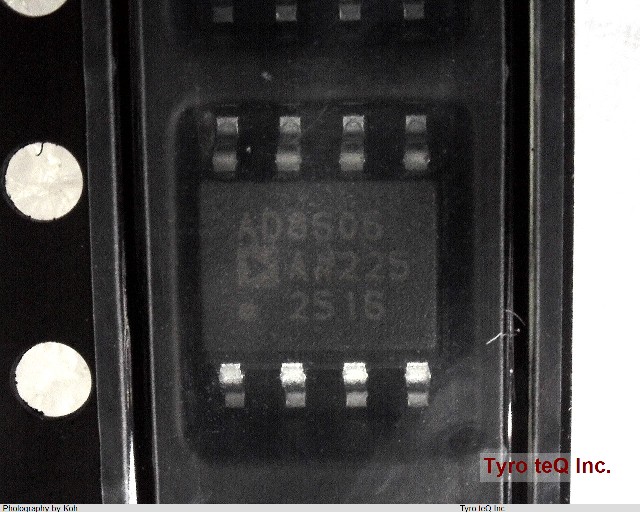

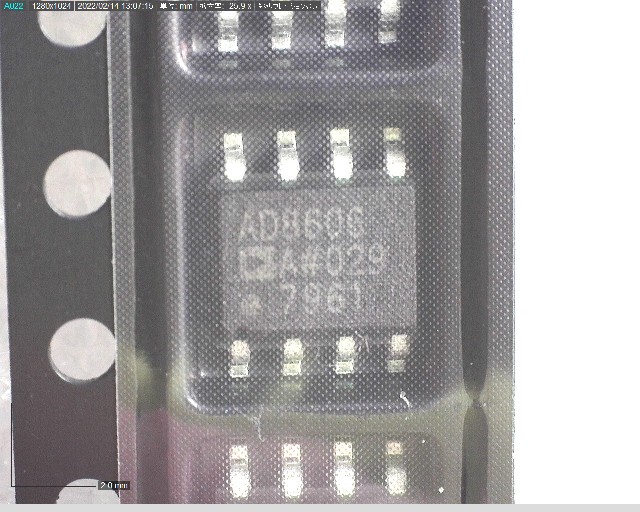

AD8606ARZ データシート

Name: AD8606ARZ
Brand: AD
SKU: 110019559-0000-0000-0000

AD8606ARZ - AD の商品詳細ページです。

２営業日以内に回答いたします

AD8606ARZ の詳細情報

型番	AD8606ARZ
メーカー	AD
データシート
Amplifier Type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB)	0.00025 uA
Bias Current-Max (IIB) @25C	1.0E-6 uA
Common-mode Reject Ratio-Nom	90 dB
Frequency Compensation	YES
Input Offset Voltage-Max	750 uV
JESD-30 Code	R-PDSO-G8
JESD-609 Code	e3
Length	4.9 mm
Low-Bias	YES
Low-Offset	YES
Micropower	NO
Moisture Sensitivity Level	1
Number of Functions	2
Number of Terminals	8
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP8,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Packing Method	TAPE AND REEL
Peak Reflow Temperature (Cel)	260
Power	NO
Power Supplies	2.7/5 V
Programmable Power	NO
Qualification Status	Not Qualified
Seated Height-Max	1.75 mm
Slew Rate-Nom	5 V/us
Sub Category	Operational Amplifier
Supply Current-Max	3 mA
Supply Voltage Limit-Max	6 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	AUTOMOTIVE
Terminal Finish	Matte Tin (Sn)
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Unity Gain BW-Nom	10000 kHz
Voltage Gain-Min	110000
Wideband	NO
Width	3.9 mm
