AD8601ARTZ-R2 データシート

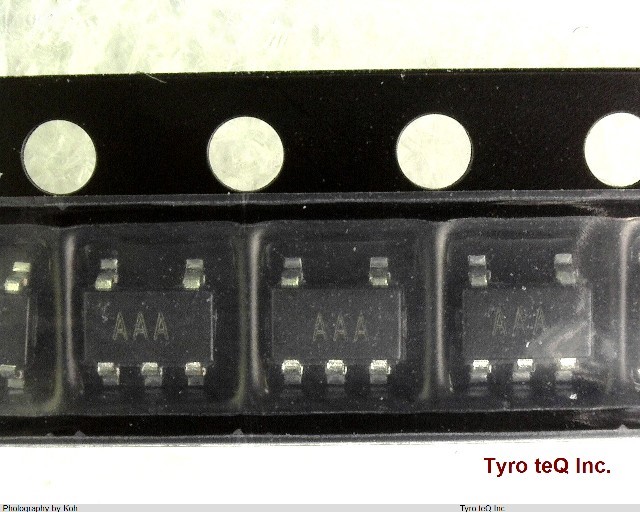

Name: AD8601ARTZ-R2
Brand: AD
SKU: 110019514-0000-0000-0000

AD8601ARTZ-R2 - AD の商品詳細ページです。

２営業日以内に回答いたします

AD8601ARTZ-R2 の詳細情報

型番	AD8601ARTZ-R2
メーカー	AD
データシート
Amplifier Type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB)	0.001 uA
Bias Current-Max (IIB) @25C	6.0E-5 uA
Common-mode Reject Ratio-Min	68 dB
Common-mode Reject Ratio-Nom	83 dB
Frequency Compensation	YES
Input Offset Voltage-Max	2100 uV
JESD-30 Code	R-PDSO-G5
JESD-609 Code	e3
Length	2.9 mm
Low-Bias	YES
Low-Offset	NO
Micropower	NO
Moisture Sensitivity Level	1
Number of Functions	1
Number of Terminals	5
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	LSSOP
Package Equivalence Code	TSOP5/6,.11,37
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	260
Power	NO
Power Supplies	3/5 V
Programmable Power	NO
Qualification Status	Not Qualified
Seated Height-Max	1.45 mm
Slew Rate-Nom	5.2 V/us
Sub Category	Operational Amplifier
Supply Current-Max	1.5 mA
Supply Voltage Limit-Max	6 V
Supply Voltage-Nom (Vsup)	3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	AUTOMOTIVE
Terminal Finish	Matte Tin (Sn)
Terminal Form	GULL WING
Terminal Pitch	0.95 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	40
Unity Gain BW-Nom	8200 kHz
Voltage Gain-Min	30000
Wideband	NO
Width	1.6 mm
