AD8544ARUZ データシート Ad02

AD8544ARUZ - AD の商品詳細ページです。

1

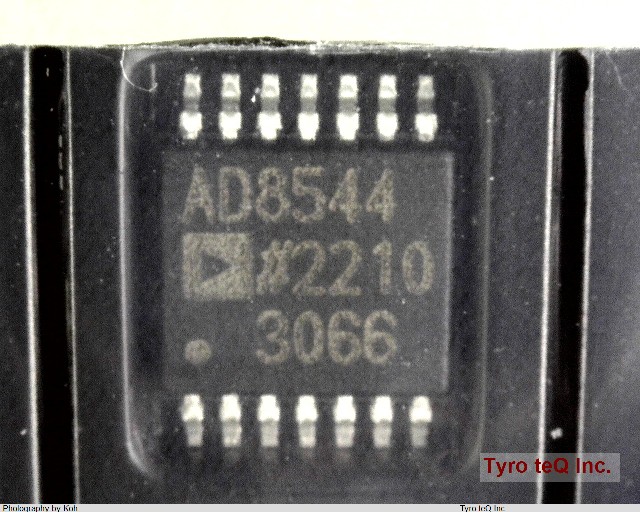

AD8544ARUZ
  • AD8544ARUZ
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • 個
２営業日以内に回答いたします
この商品のお問い合わせ

AD8544ARUZ の詳細情報

  • 仕様・詳細
  • メーカー情報
型番AD8544ARUZ
メーカーAD
データシートProduct_list_pdf
Amplifier Type OPERATIONAL AMPLIFIER
Architecture VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB) 0.001 uA
Bias Current-Max (IIB) @25C 6.0E-5 uA
Common-mode Reject Ratio-Nom 45 dB
Frequency Compensation YES
Input Offset Voltage-Max 7000 uV
JESD-30 Code R-PDSO-G14
JESD-609 Code e3
Length 5 mm
Low-Bias YES
Low-Offset NO
Micropower YES
Moisture Sensitivity Level 1
Number of Functions 4
Number of Terminals 14
Operating Temperature-Max 125 Cel
Operating Temperature-Min -40 Cel
Package Body Material PLASTIC/EPOXY
Package Code TSSOP
Package Equivalence Code TSSOP14,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, THIN PROFILE, SHRINK PITCH Meter
Packing Method TAPE AND REEL
Peak Reflow Temperature (Cel) 260
Power Supplies 2.7/5 V
Qualification Status Not Qualified
Seated Height-Max 1.2 mm
Slew Rate-Min 0.4 V/us
Slew Rate-Nom 0.8 V/us
Sub Category Operational Amplifier
Supply Current-Max 3.4 mA
Supply Voltage Limit-Max 6 V
Supply Voltage-Nom (Vsup) 3 V
Surface Mount YES
Technology CMOS
Temperature Grade AUTOMOTIVE
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 0.65 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Unity Gain BW-Nom 980 kHz
Voltage Gain-Min 2000
Width 4.4 mm
会社名称アナログ・デバイセズ
設立1965
所在地One Technology Way P. O. Box 9106 Norwood, MA 02062-9106 United States
URLhttp://www.analog.com/
