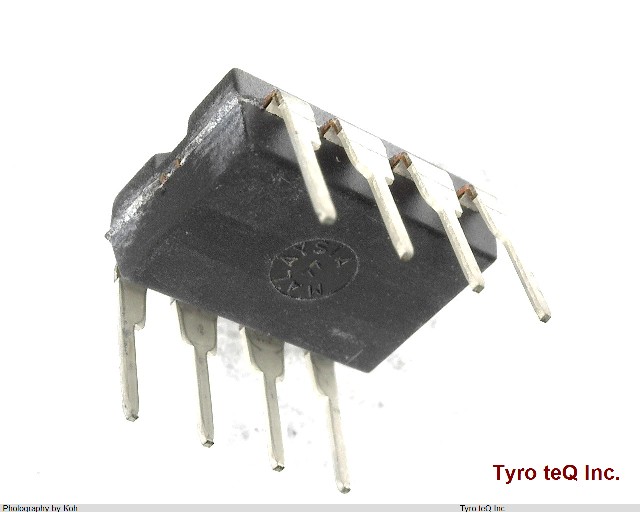

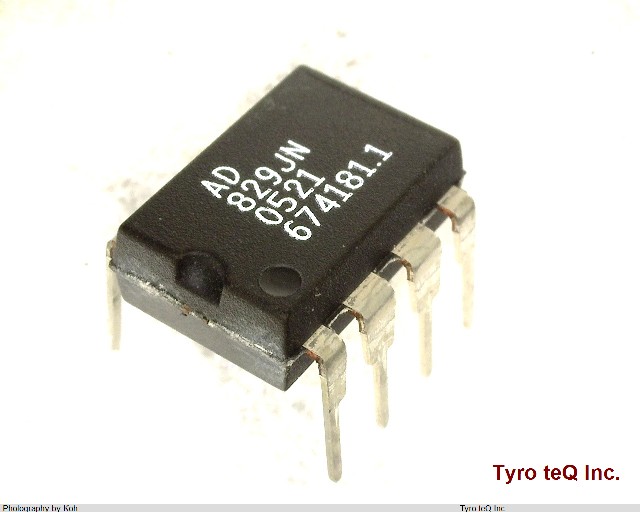

AD829JN
データシート
1
-
- 個
２営業日以内に回答いたします
AD829JN の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | AD829JN |
|---|---|
| メーカー | AD |
| データシート |  |
| Amplifier Type | OPERATIONAL AMPLIFIER |
| JESD-30 Code | R-PDIP-T8 |
| JESD-609 Code | e3 |
| Length | 9.27 mm |
| Mfr Name | ANALOG DEVICES INC |
| Mfr P/N | AD829JN |
| Neg Supply Voltage Limit-Max | -18 V |
| Neg Supply Voltage-Nom (Vsup) | -15 V |
| New Category | Operational Amplifiers |
| New Part Type | AMPLIFIERS |
| Number of Functions | 1 |
| Number of Terminals | 8 |
| Old Category | Audio/Video Amplifiers |
| Old Part Type | CONSUMER_ICS |
| Operating Temperature-Max | 70 Cel |
| Operating Temperature-Min | 0 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | DIP |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE Meter |
| Part Objectid | 1452481313 |
| Peak Reflow Temperature (Cel) | NOT APPLICABLE |
| Qualification Status | Not Qualified |
| Seated Height-Max | 5.33 mm |
| Sub Category | Operational Amplifier |
| Supply Voltage Limit-Max | 18 V |
| Supply Voltage-Nom (Vsup) | 15 V |
| Surface Mount | NO |
| Technology | BIPOLAR |
| Temperature Grade | COMMERCIAL |
| Terminal Finish | Matte Tin (Sn) |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | NOT APPLICABLE |
| Width | 7.62 mm |
| 会社名称 | アナログ・デバイセズ |
|---|---|
| 設立 | 1965 |
| 所在地 | One Technology Way P. O. Box 9106 Norwood, MA 02062-9106 United States |
| URL | http://www.analog.com/ |
