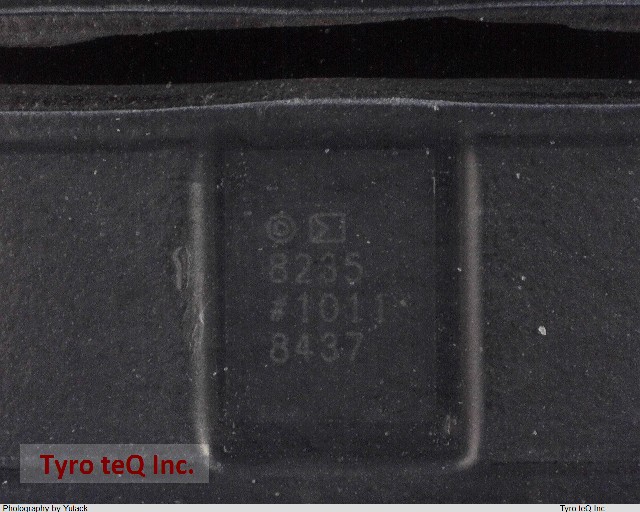

AD8235ACBZ-P7
  • AD8235ACBZ-P7
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • 個
２営業日以内に回答いたします
この商品のお問い合わせ

AD8235ACBZ-P7 の詳細情報

  • 仕様・詳細
  • メーカー情報
型番AD8235ACBZ-P7
メーカーAD
データシートProduct_list_pdf
Amplifier Type INSTRUMENTATION AMPLIFIER
Average Bias Current-Max (IIB) 0.0006 uA
Bandwidth (3dB)-Nom 0.023 MHz
Common-mode Reject Ratio-Min 100 dB
Input Offset Current-Max (IIO) 0.00013 uA
Input Offset Voltage-Max 2500 uV
JESD-30 Code R-PBGA-B11
JESD-609 Code e1
Length 2.04 mm
Moisture Sensitivity Level 1
Neg Supply Voltage-Nom (Vsup) 0 V
Non-linearity-Max 0.001 %
Number of Functions 1
Number of Terminals 11
Operating Temperature-Max 125 Cel
Operating Temperature-Min -40 Cel
Package Body Material PLASTIC/EPOXY
Package Code VFBGA
Package Equivalence Code BGA11,3X4,20
Package Shape RECTANGULAR
Package Style GRID ARRAY, VERY THIN PROFILE, FINE PITCH Meter
Peak Reflow Temperature (Cel) 260
Power Supplies 1.8/5 V
Qualification Status Not Qualified
Seated Height-Max 0.657 mm
Slew Rate-Nom 0.009 V/us
Sub Category Instrumentation Amplifier
Supply Current-Max 0.05 mA
Supply Voltage Limit-Max 6 V
Supply Voltage-Nom (Vsup) 5 V
Surface Mount YES
Temperature Grade AUTOMOTIVE
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Terminal Form BALL
Terminal Pitch 0.5 mm
Terminal Position BOTTOM
Time@Peak Reflow Temperature-Max (s) 30
Voltage Gain-Max 200
Voltage Gain-Min 5
Voltage Gain-Nom 10
Width 1.57 mm
会社名称アナログ・デバイセズ
設立1965
所在地One Technology Way P. O. Box 9106 Norwood, MA 02062-9106 United States
URLhttp://www.analog.com/
