AD8226ARMZ データシート

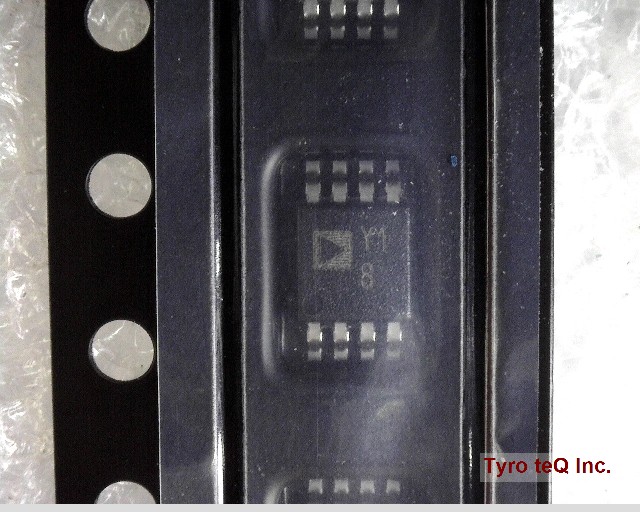

Name: AD8226ARMZ
Brand: AD
SKU: 110145313-0000-0000-0000

AD8226ARMZ - AD の商品詳細ページです。

２営業日以内に回答いたします

AD8226ARMZ の詳細情報

型番	AD8226ARMZ
メーカー	AD
データシート
Amplifier Type	INSTRUMENTATION AMPLIFIER
Average Bias Current-Max (IIB)	0.027 uA
Bandwidth (3dB)-Nom	1.5 MHz
Common-mode Reject Ratio-Min	80 dB
Input Offset Current-Max (IIO)	0.001 uA
Input Offset Voltage-Max	100 uV
JESD-30 Code	S-PDSO-G8
JESD-609 Code	e4
Length	3 mm
Moisture Sensitivity Level	1
Neg Supply Voltage Limit-Max	-18 V
Neg Supply Voltage-Nom (Vsup)	-15 V
Non-linearity-Max	0.001 %
Number of Functions	1
Number of Terminals	8
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	TSSOP
Package Equivalence Code	TSSOP8,.19
Package Shape	SQUARE
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	+-15 V
Qualification Status	Not Qualified
Seated Height-Max	1.1 mm
Slew Rate-Nom	0.4 V/us
Sub Category	Instrumentation Amplifier
Supply Current-Max	0.6 mA
Supply Voltage Limit-Max	18 V
Supply Voltage-Nom (Vsup)	15 V
Surface Mount	YES
Temperature Grade	AUTOMOTIVE
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Voltage Gain-Max	1000
Voltage Gain-Min	1
Voltage Gain-Nom	5
Width	3 mm
