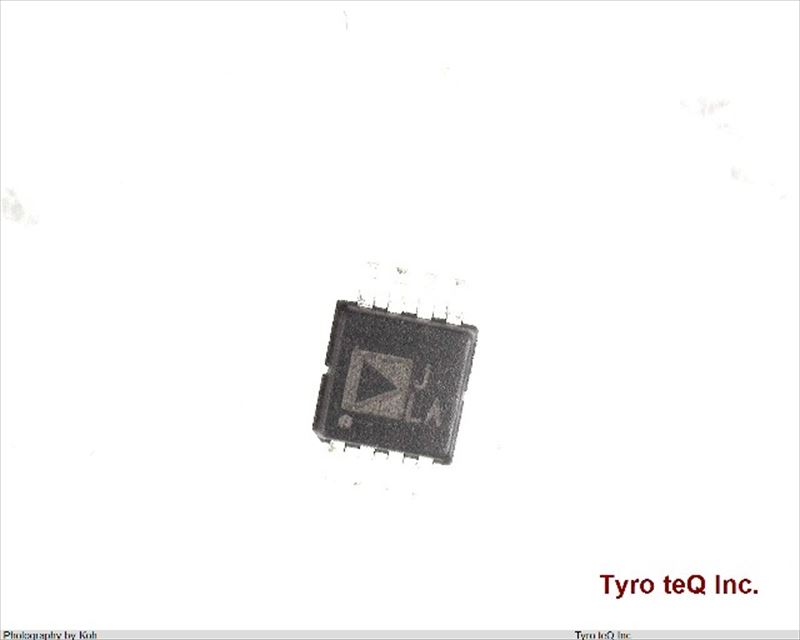

AD8221ARMZ データシート

Name: AD8221ARMZ
Brand: AD
SKU: 110018751-0000-0000-0000

AD8221ARMZ - AD の商品詳細ページです。

２営業日以内に回答いたします

AD8221ARMZ の詳細情報

型番	AD8221ARMZ
メーカー	AD
データシート
Amplifier Type	INSTRUMENTATION AMPLIFIER
Average Bias Current-Max (IIB)	0.0015 uA
Bandwidth (3dB)-Nom	0.825 MHz
Common-mode Reject Ratio-Min	90 dB
Input Offset Current-Max (IIO)	0.0006 uA
Input Offset Voltage-Max	60 uV
JESD-30 Code	S-PDSO-G8
JESD-609 Code	e0
Length	3 mm
Moisture Sensitivity Level	1
Neg Supply Voltage Limit-Max	-18 V
Neg Supply Voltage-Nom (Vsup)	-15 V
Non-linearity-Max	0.001 %
Number of Functions	1
Number of Terminals	8
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	TSSOP
Package Equivalence Code	TSSOP8,.19
Package Shape	SQUARE
Package Style	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	240
Power Supplies	+-15 V
Qualification Status	Not Qualified
Seated Height-Max	1.1 mm
Slew Rate-Nom	2 V/us
Sub Category	Instrumentation Amplifier
Supply Current-Max	1 mA
Supply Voltage Limit-Max	18 V
Supply Voltage-Nom (Vsup)	15 V
Surface Mount	YES
Temperature Grade	INDUSTRIAL
Terminal Finish	Matte Tin (Sn)
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Voltage Gain-Max	1000
Voltage Gain-Min	1
Voltage Gain-Nom	10
Width	3 mm
