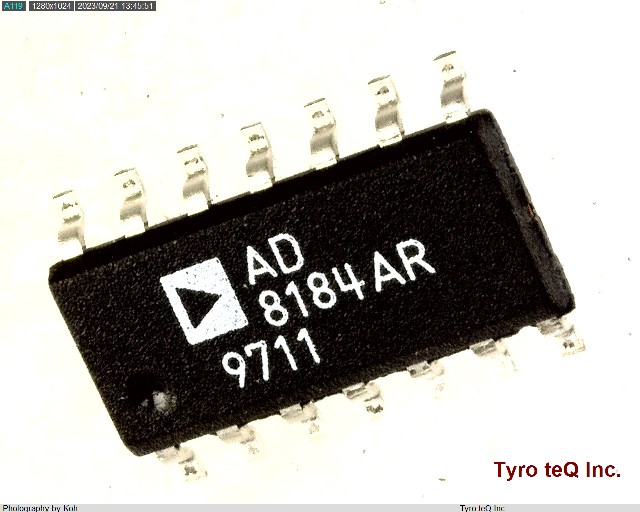

AD8184AR
データシート
1
-
- 個
２営業日以内に回答いたします
AD8184AR の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | AD8184AR |
|---|---|
| メーカー | AD |
| データシート |  |
| Analog IC - Other Type | SINGLE-ENDED MULTIPLEXER |
| JESD-30 Code | R-PDSO-G14 |
| JESD-609 Code | e0 |
| Length | 8.65 mm |
| Moisture Sensitivity Level | 1 |
| Neg Supply Voltage-Nom (Vsup) | -5 V |
| Number of Channels | 4 |
| Number of Functions | 1 |
| Number of Terminals | 14 |
| Off-state Isolation-Nom | 115 dB |
| Operating Temperature-Max | 85 Cel |
| Operating Temperature-Min | -40 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | SOP |
| Package Equivalence Code | SOP14,.25 |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE Meter |
| Peak Reflow Temperature (Cel) | 240 |
| Power Supplies | +-5 V |
| Qualification Status | Not Qualified |
| Seated Height-Max | 1.75 mm |
| Sub Category | Multiplexer or Switches |
| Supply Current-Max (Isup) | 5.7 mA |
| Supply Voltage-Nom (Vsup) | 5 V |
| Surface Mount | YES |
| Technology | BIPOLAR |
| Temperature Grade | INDUSTRIAL |
| Terminal Finish | Matte Tin (Sn) |
| Terminal Form | GULL WING |
| Terminal Pitch | 1.27 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | 30 |
| Width | 3.9 mm |
| 会社名称 | アナログ・デバイセズ |
|---|---|
| 設立 | 1965 |
| 所在地 | One Technology Way P. O. Box 9106 Norwood, MA 02062-9106 United States |
| URL | http://www.analog.com/ |
