AD8116JSTZ データシート

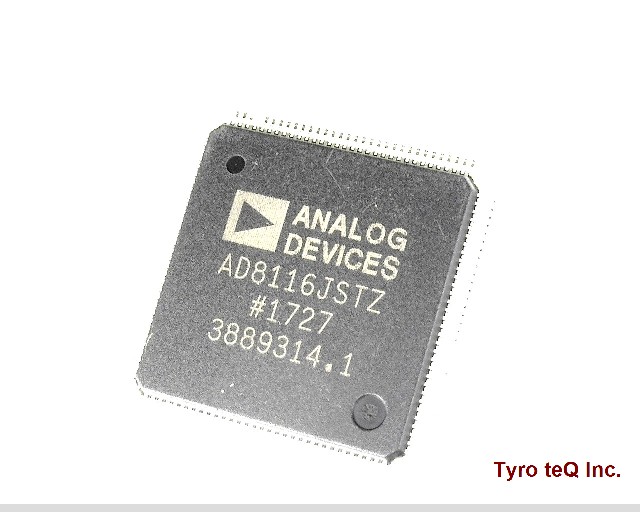

Name: AD8116JSTZ
Brand: AD
SKU: 110018494-0000-0000-0000

AD8116JSTZ - AD の商品詳細ページです。

２営業日以内に回答いたします

AD8116JSTZ の詳細情報

型番	AD8116JSTZ
メーカー	AD
データシート
Additional Feature	ALSO REQUIRES 5V NEGATIVE SUPPLY
Boundary Scan	NO
Clock Frequency-Max	5 MHz
External Data Bus Width	16
JESD-30 Code	S-PQFP-G128
JESD-609 Code	e3
Length	14 mm
Low Power Mode	NO
Moisture Sensitivity Level	3
Number of Terminals	128
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Output Data Bus Width	16
Package Body Material	PLASTIC/EPOXY
Package Code	LFQFP
Package Shape	SQUARE
Package Style	FLATPACK, LOW PROFILE, FINE PITCH Meter
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Seated Height-Max	1.6 mm
Supply Voltage-Max	5.5 V
Supply Voltage-Min	4.5 V
Supply Voltage-Nom	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	Matte Tin (Sn)
Terminal Form	GULL WING
Terminal Pitch	0.4 mm
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	30
Width	14 mm
uPs/uCs/Peripheral ICs Type	DSP PERIPHERAL, CROSSBAR SWITCH
