- AD810AR

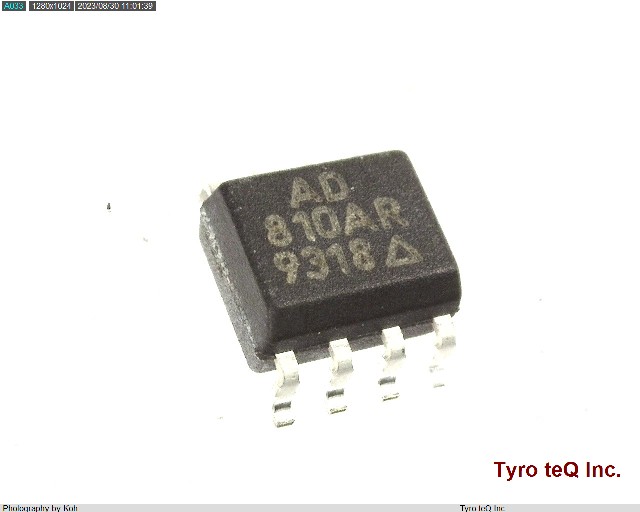

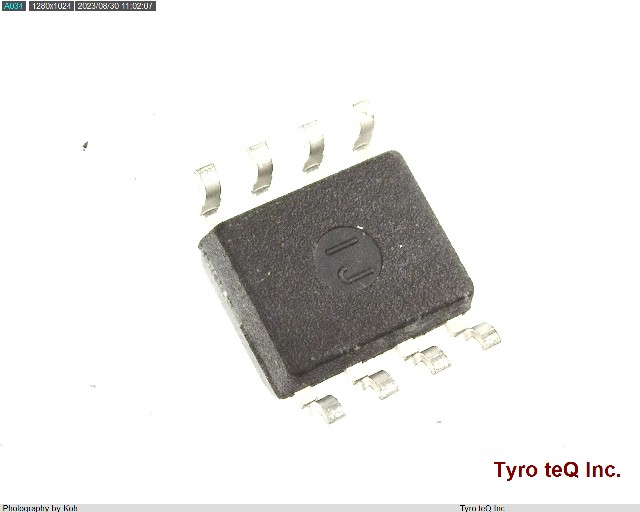

AD810AR
データシート
1
-
- 個
２営業日以内に回答いたします
AD810AR の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | AD810AR |
|---|---|
| メーカー | AD |
| データシート |  |
| Amplifier Type | OPERATIONAL AMPLIFIER |
| Common-mode Reject Ratio-Nom | 64 dB |
| Input Offset Voltage-Max | 7500 uV |
| JESD-30 Code | R-PDSO-G8 |
| JESD-609 Code | e0 |
| Length | 4.9 mm |
| Mfr Name | ANALOG DEVICES INC |
| Mfr P/N | AD810AR-REEL |
| Moisture Sensitivity Level | 1 |
| Neg Supply Voltage Limit-Max | -18 V |
| Neg Supply Voltage-Nom (Vsup) | -15 V |
| New Category | Operational Amplifiers |
| New Part Type | AMPLIFIERS |
| Number of Functions | 1 |
| Number of Terminals | 8 |
| Old Category | Audio/Video Amplifiers |
| Old Part Type | CONSUMER_ICS |
| Operating Temperature-Max | 85 Cel |
| Operating Temperature-Min | -40 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | SOP |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE Meter |
| Part Objectid | 1416099237 |
| Peak Reflow Temperature (Cel) | 240 |
| Qualification Status | Not Qualified |
| Seated Height-Max | 1.75 mm |
| Slew Rate-Nom | 1000 V/us |
| Sub Category | Operational Amplifier |
| Supply Voltage Limit-Max | 18 V |
| Supply Voltage-Nom (Vsup) | 15 V |
| Surface Mount | YES |
| Temperature Grade | INDUSTRIAL |
| Terminal Finish | Matte Tin (Sn) |
| Terminal Form | GULL WING |
| Terminal Pitch | 1.27 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | 30 |
| Width | 3.9 mm |
| 会社名称 | アナログ・デバイセズ |
|---|---|
| 設立 | 1965 |
| 所在地 | One Technology Way P. O. Box 9106 Norwood, MA 02062-9106 United States |
| URL | http://www.analog.com/ |
AD810ARのレビュー
AD810AR のご注文について
050-3612-7934
045-263-9989
AD810AR - AD の商品詳細ページです。
