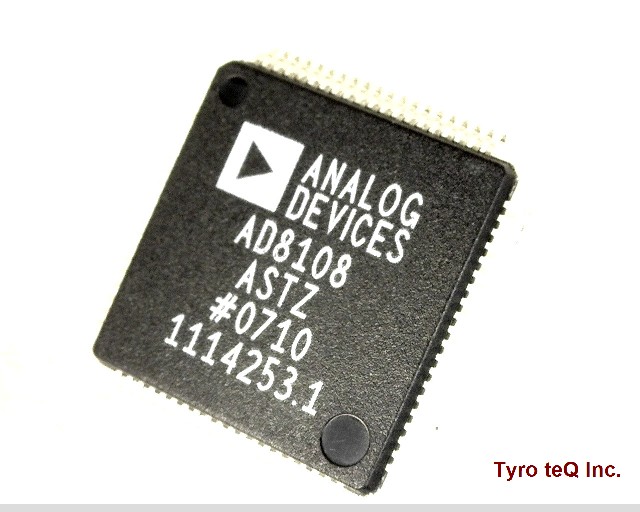

AD8108ASTZ データシート

Name: AD8108ASTZ
Brand: AD
SKU: 110018469-0000-0000-0000

AD8108ASTZ - AD の商品詳細ページです。

２営業日以内に回答いたします

AD8108ASTZ の詳細情報

型番	AD8108ASTZ
メーカー	AD
データシート
Analog IC - Other Type	CROSS POINT SWITCH
JESD-30 Code	S-PQFP-G80
JESD-609 Code	e3
Length	12 mm
Moisture Sensitivity Level	3
Neg Supply Voltage-Max (Vsup)	-5.5 V
Neg Supply Voltage-Min (Vsup)	-4.5 V
Neg Supply Voltage-Nom (Vsup)	-5 V
Number of Channels	8
Number of Functions	1
Number of Terminals	80
Off-state Isolation-Nom	93 dB
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output	SEPARATE OUTPUT V
Package Body Material	PLASTIC/EPOXY
Package Code	LFQFP
Package Equivalence Code	QFP80,.55SQ,20
Package Shape	SQUARE
Package Style	FLATPACK, LOW PROFILE, FINE PITCH Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	5 V
Qualification Status	Not Qualified
Seated Height-Max	1.6 mm
Sub Category	Multiplexer or Switches
Supply Voltage-Max (Vsup)	5.5 V
Supply Voltage-Min (Vsup)	4.5 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Switch-on Time-Max	180 ns
Switching	BREAK-BEFORE-MAKE V
Technology	BIPOLAR
Temperature Grade	INDUSTRIAL
Terminal Finish	Matte Tin (Sn)
Terminal Form	GULL WING
Terminal Pitch	0.5 mm
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	30
Width	12 mm
