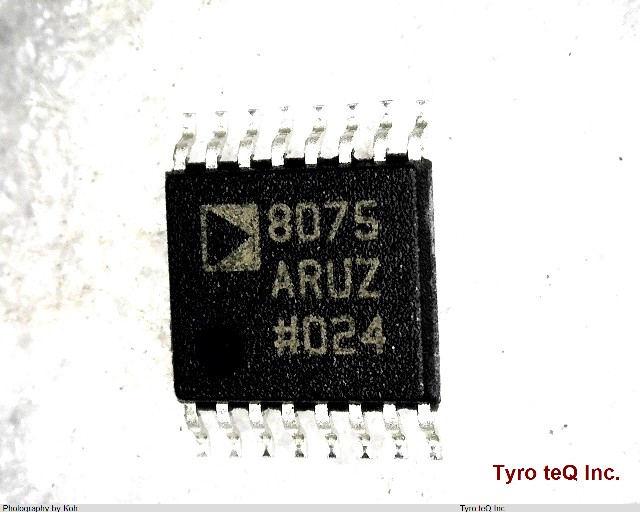

AD8075ARUZ データシート

Name: AD8075ARUZ
Brand: AD
SKU: 110002637-0000-0000-0000

AD8075ARUZ - AD の商品詳細ページです。

２営業日以内に回答いたします

AD8075ARUZ の詳細情報

型番	AD8075ARUZ
メーカー	AD
データシート
Amplifier Type	BUFFER
Average Bias Current-Max (IIB)	10 uA
Bandwidth (3dB)-Nom	550 MHz
Bias Current-Max (IIB) @25C	10 uA
Input Offset Voltage-Max	40000 uV
JESD-30 Code	R-PDSO-G16
JESD-609 Code	e3
Length	5 mm
Moisture Sensitivity Level	1
Neg Supply Voltage Limit-Max	-6 V
Neg Supply Voltage-Nom (Vsup)	-5 V
Number of Functions	3
Number of Terminals	16
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	TSSOP
Package Equivalence Code	TSSOP16,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	+-5 V
Qualification Status	Not Qualified
Seated Height-Max	1.2 mm
Slew Rate-Nom	1350 V/us
Sub Category	Buffer Amplifier
Supply Current-Max	30 mA
Supply Voltage Limit-Max	6 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Temperature Grade	INDUSTRIAL
Terminal Finish	Matte Tin (Sn)
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Width	4.4 mm

会社名称	アナログ・デバイセズ
設立	1965
所在地	One Technology Way P. O. Box 9106 Norwood, MA 02062-9106 United States
URL	http://www.analog.com/
