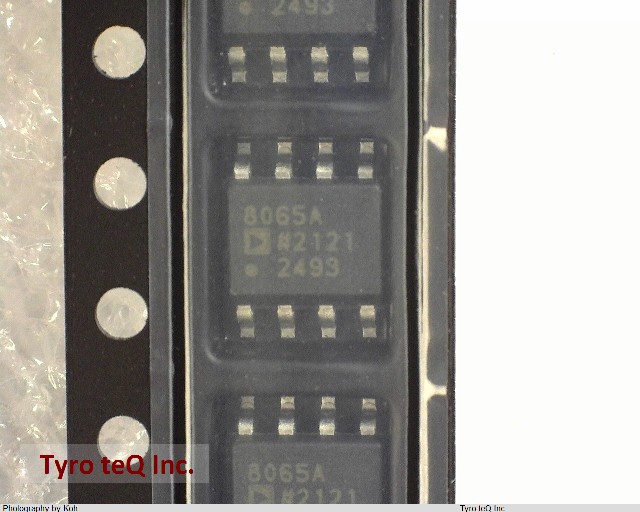

AD8065ARZ データシート

Name: AD8065ARZ
Brand: AD
SKU: 110018390-0000-0000-0000

AD8065ARZ - AD の商品詳細ページです。

２営業日以内に回答いたします

AD8065ARZ の詳細情報

型番	AD8065ARZ
メーカー	AD
データシート
Amplifier Type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB)	6.0E-6 uA
Bias Current-Max (IIB) @25C	6.0E-6 uA
Common-mode Reject Ratio-Min	85 dB
Common-mode Reject Ratio-Nom	100 dB
Frequency Compensation	NO
Input Offset Current-Max (IIO)	0.000125 uA
Input Offset Voltage-Max	1500 uV
JESD-30 Code	R-PDSO-G8
JESD-609 Code	e3
Length	4.9 mm
Low-Bias	YES
Low-Offset	NO
Moisture Sensitivity Level	1
Neg Supply Voltage Limit-Max	-13.2 V
Neg Supply Voltage-Nom (Vsup)	-5 V
Number of Functions	1
Number of Terminals	8
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP8,0.236
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Packing Method	REEL
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Seated Height-Max	1.75 mm
Slew Rate-Min	130 V/us
Slew Rate-Nom	180 V/us
Sub Category	Operational Amplifier
Supply Current-Max	7.2 mA
Supply Voltage Limit-Max	13.2 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Technology	BIPOLAR
Temperature Grade	INDUSTRIAL
Terminal Finish	Matte Tin (Sn)
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Voltage Gain-Min	100000
Width	3.9 mm
