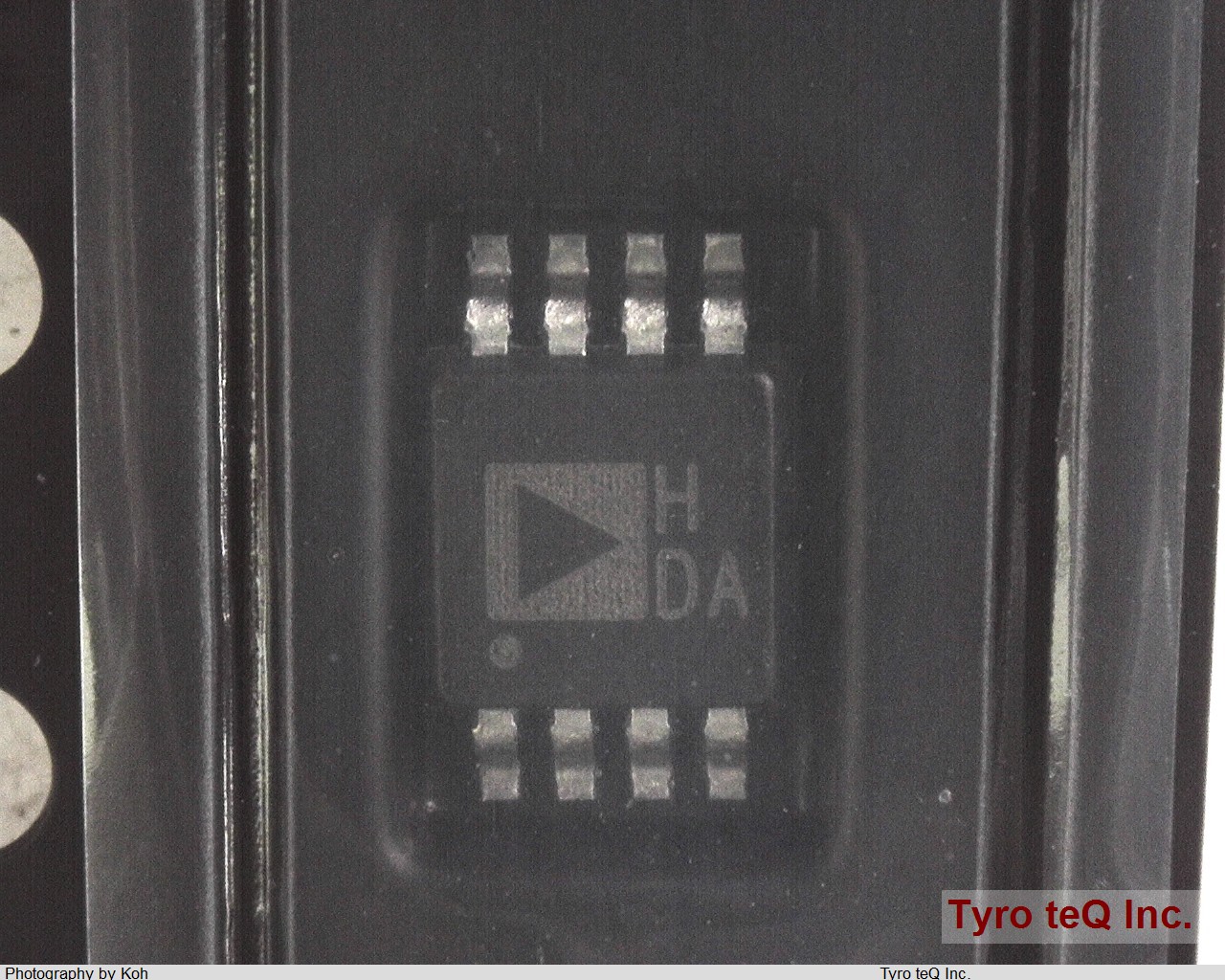

AD8022ARMZ-REEL7 データシート

Name: AD8022ARMZ-REEL7
Brand: AD
SKU: 110018186-0000-0000-0000

AD8022ARMZ-REEL7 - AD の商品詳細ページです。

２営業日以内に回答いたします

AD8022ARMZ-REEL7 の詳細情報

型番	AD8022ARMZ-REEL7
メーカー	AD
データシート
Amplifier Type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB)	7.5 uA
Bias Current-Max (IIB) @25C	5 uA
Common-mode Reject Ratio-Nom	98 dB
Frequency Compensation	YES
Input Offset Voltage-Max	6250 uV
JESD-30 Code	S-PDSO-G8
JESD-609 Code	e3
Length	3 mm
Low-Bias	NO
Low-Offset	NO
Micropower	NO
Moisture Sensitivity Level	1
Neg Supply Voltage Limit-Max	-13.2 V
Neg Supply Voltage-Nom (Vsup)	-2.5 V
Number of Functions	2
Number of Terminals	8
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	TSSOP
Package Equivalence Code	TSSOP8,.19
Package Shape	SQUARE
Package Style	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	260
Power	NO
Power Supplies	+-2.5/+-12 V
Programmable Power	NO
Qualification Status	Not Qualified
Seated Height-Max	1.1 mm
Slew Rate-Min	30 V/us
Slew Rate-Nom	42 V/us
Sub Category	Operational Amplifier
Supply Current-Max	12.2 mA
Supply Voltage Limit-Max	13.2 V
Supply Voltage-Nom (Vsup)	2.5 V
Surface Mount	YES
Technology	BIPOLAR
Temperature Grade	INDUSTRIAL
Terminal Finish	Matte Tin (Sn)
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Unity Gain BW-Nom	120000 kHz
Wideband	YES
Width	3 mm
