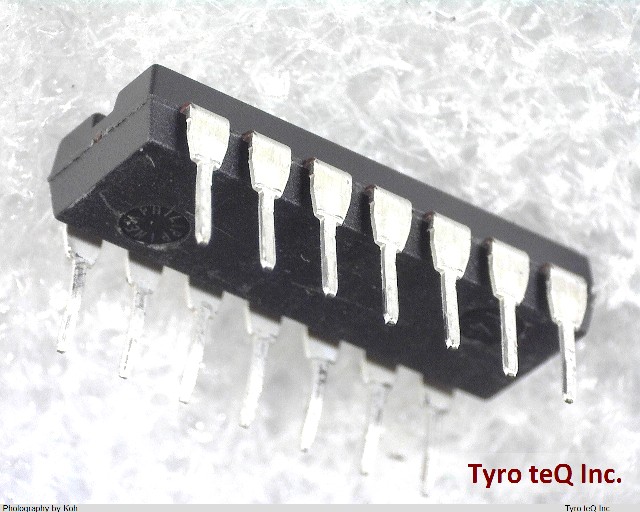

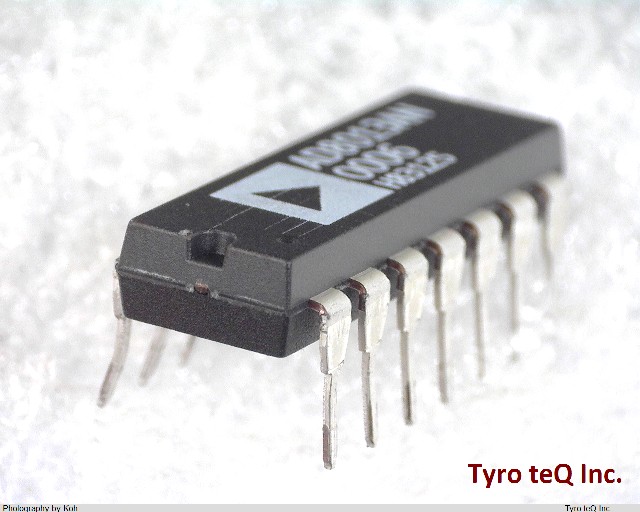

AD8013AN データシート

Name: AD8013AN
Brand: AD
SKU: 110018141-0000-0000-0000

AD8013AN - AD の商品詳細ページです。

２営業日以内に回答いたします

AD8013AN の詳細情報

型番	AD8013AN
メーカー	AD
データシート
Additional Feature	CAN ALSO WORK WITH SINGLE 5V SUPPLY
Bandwidth-Nom	140000 kHz
Consumer IC Type	VIDEO AMPLIFIER
Gain	10 dB
JESD-30 Code	R-PDIP-T14
JESD-609 Code	e0
Length	19.305 mm
Number of Channels	3
Number of Functions	1
Number of Terminals	14
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	240
Qualification Status	Not Qualified
Seated Height-Max	5.33 mm
Supply Current-Max	4 mA
Supply Voltage-Max (Vsup)	6.5 V
Supply Voltage-Min (Vsup)	2.1 V
Surface Mount	NO
Temperature Grade	INDUSTRIAL
Terminal Finish	Matte Tin (Sn)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Width	7.62 mm
