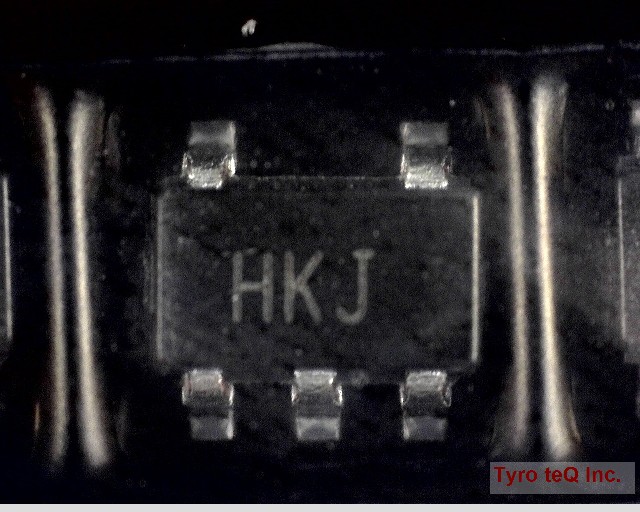

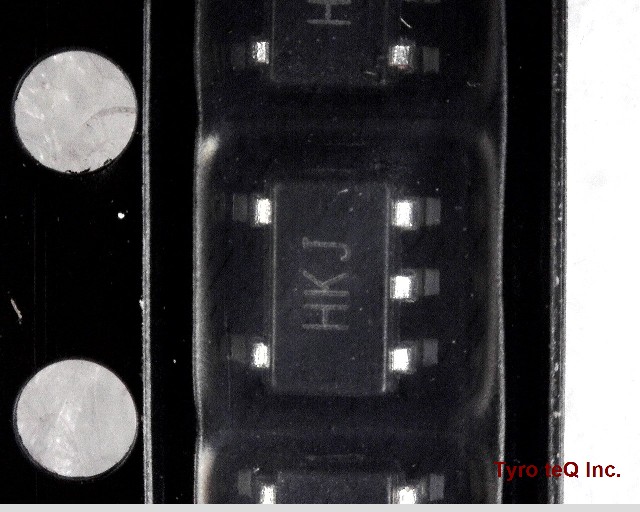

AD8009JRTZ-REEL

Name: AD8009JRTZ-REEL
Brand: AD
SKU: 400068703-0000-0000-0000

AD8009JRTZ-REEL - AD の商品詳細ページです。

２営業日以内に回答いたします

AD8009JRTZ-REEL の詳細情報

型番	AD8009JRTZ-REEL
メーカー	AD
Amplifier Type	OPERATIONAL AMPLIFIER
Average Bias Current-Max (IIB)	150 uA
Average Bias Current-Max (IIB) (uA)	150
Common-mode Reject Ratio-Nom	52 dB
Common-mode Reject Ratio-Nom (dB)	52
DLA Qualification	Not Qualified
Input Offset Voltage-Max	7000 uV
Input Offset Voltage-Max (uV)	7000
J-STD-609 Code	e3
JESD-30 Code	R-PDSO-G5
JESD-609 Code	e3
Length	2.9 mm
Length (mm)	2.9
Moisture Sensitivity Level	1
Neg Supply Voltage Limit-Max	-6.3 V
Neg Supply Voltage Limit-Max (V)	-6.3
Neg Supply Voltage-Nom (Vsup)	-5 V
Negative Supply Voltage-Nom (V)	-5
Number of Functions	1
Number of Terminals	5
Operating Temperature-Max	70 Cel
Operating Temperature-Max (Cel)	70
Operating Temperature-Min	0 Cel
Operating Temperature-Min (Cel)	0
Package Body Material	PLASTIC/EPOXY
Package Code	LSSOP
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Seated Height-Max	1.45 mm
Seated Height-Max (mm)	1.45
Slew Rate-Nom	5500 V/us
Slew Rate-Nom (V/us)	5500
Sub Category	Operational Amplifier
Supply Voltage Limit-Max	6.3 V
Supply Voltage Limit-Max (V)	6.3
Supply Voltage-Nom (V)	5
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Temperature Grade	COMMERCIAL
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	0.95 mm
Terminal Pitch (mm)	0.95
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Width	1.6 mm
Width (mm)	1.6

会社名称	アナログ・デバイセズ
設立	1965
所在地	One Technology Way P. O. Box 9106 Norwood, MA 02062-9106 United States
URL	http://www.analog.com/
