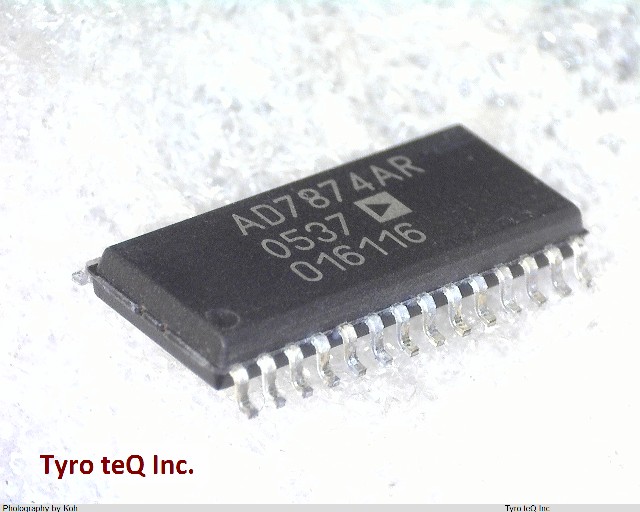

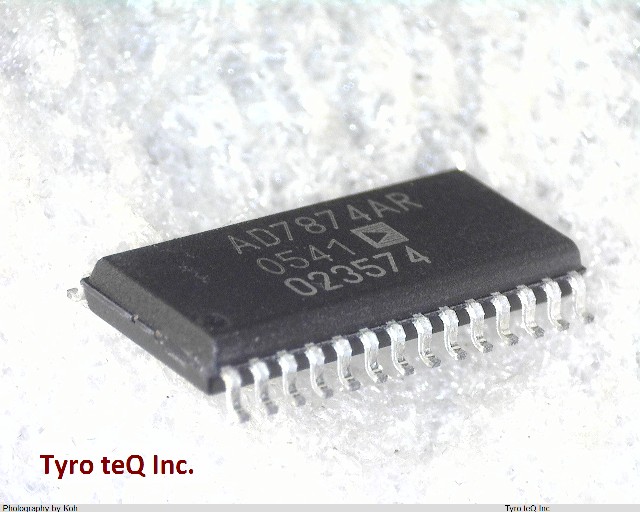

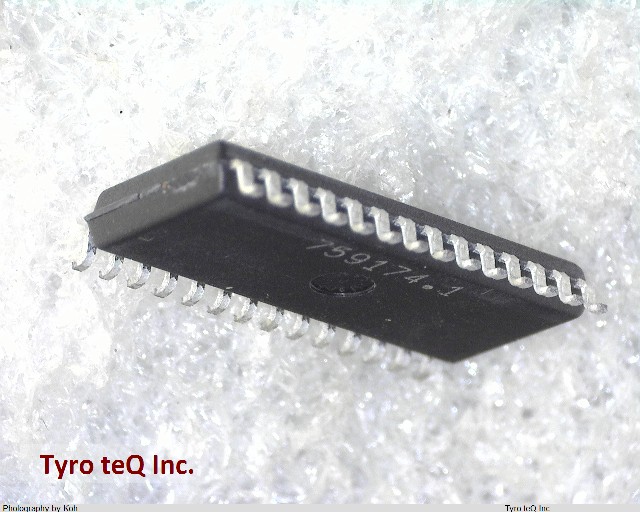

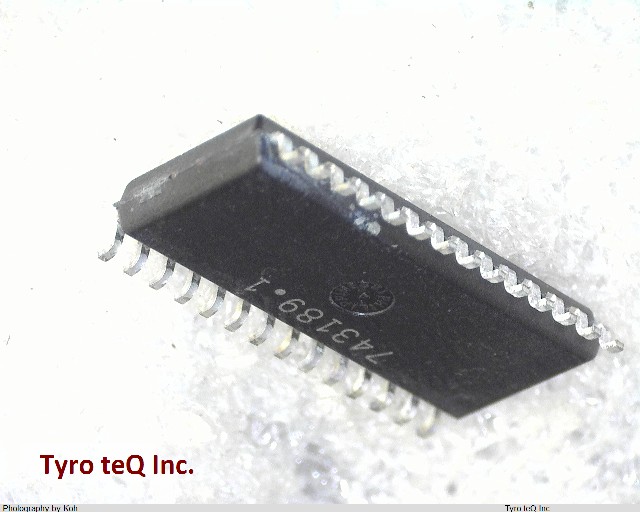

AD7874AR データシート

Name: AD7874AR
Brand: AD
SKU: 110017586-0000-0000-0000

AD7874AR - AD の商品詳細ページです。

２営業日以内に回答いたします

AD7874AR の詳細情報

型番	AD7874AR
メーカー	AD
データシート
Analog Input Voltage-Max	10 V
Analog Input Voltage-Min	-10 V
Conversion Time-Max	35 us
Converter Type	ADC, SUCCESSIVE APPROXIMATION
JESD-30 Code	R-PDSO-G28
JESD-609 Code	e0
Length	17.89 mm
Linearity Error-Max (EL)	0.024 %
Moisture Sensitivity Level	3
Negative Supply Voltage-Nom	-5 V
Number of Analog In Channels	4
Number of Bits	12
Number of Functions	1
Number of Terminals	28
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Bit Code	2'S COMPLEMENT BINARY
Output Format	PARALLEL, WORD
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP28,.4
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	240
Power Supplies	+-5 V
Qualification Status	Not Qualified
Sample Rate	0.029 MHz
Sample-and-Hold/Track-and-Hold	TRACK
Screening Level	MIL-STD-883 Class B
Seated Height-Max	2.65 mm
Sub Category	Analog to Digital Converters
Supply Current-Max	18 mA
Supply Voltage-Nom	5 V
Surface Mount	YES
Technology	BICMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Matte Tin (Sn)
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Width	7.5 mm
