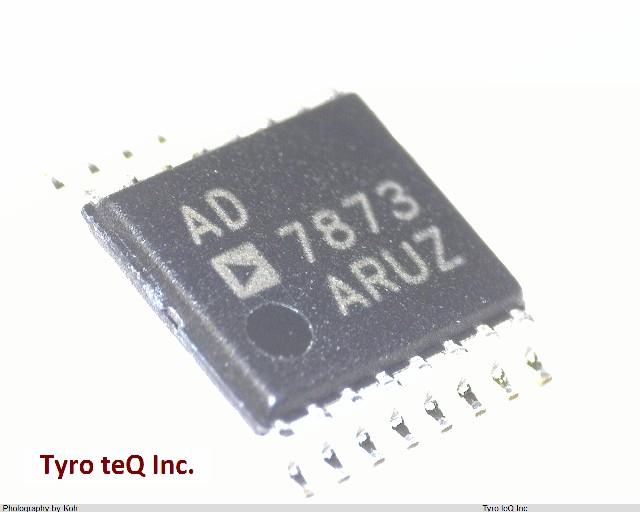

AD7873ARUZ データシート

Name: AD7873ARUZ
Brand: AD
SKU: 110017572-0000-0000-0000

AD7873ARUZ - AD の商品詳細ページです。

２営業日以内に回答いたします

AD7873ARUZ の詳細情報

型番	AD7873ARUZ
メーカー	AD
データシート
Additional Feature	FUNCTIONALLY IT OPERATES FROM 2.2 TO 5.25V
Consumer IC Type	CONSUMER CIRCUIT
JESD-30 Code	R-PDSO-G16
JESD-609 Code	e3
Length	5 mm
Moisture Sensitivity Level	1
Number of Functions	1
Number of Terminals	16
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	TSSOP
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Seated Height-Max	1.2 mm
Supply Current-Max	0.38 mA
Supply Voltage-Max (Vsup)	3.6 V
Supply Voltage-Min (Vsup)	2.2 V
Surface Mount	YES
Temperature Grade	INDUSTRIAL
Terminal Finish	Matte Tin (Sn)
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Width	4.4 mm

会社名称	アナログ・デバイセズ
設立	1965
所在地	One Technology Way P. O. Box 9106 Norwood, MA 02062-9106 United States
URL	http://www.analog.com/
